PP Plastic Chair Injection Molding Apparatus Making Machine

Product Description

PP Plastic Chair injection molding apparatus Making Machine
Product Description

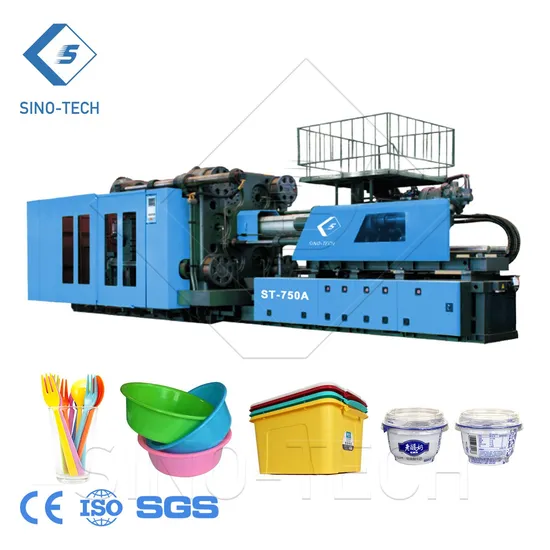

SINO-TECH ST-series with clamping force ranges 70 to 4000Ton,injection weight from 50 to 10000g. We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Also we have CE and ISO certificationMain Features1.Arch template, effectively protects the mold, especially suitable for big template with small mold.2.The electric ruler is installed on the crosshead, the position is more precise.3.The front connecting rod uses connected structure, increases the rod strength, and easy for assembly4.The connected tail-board stills itself with big lock shaft, improves tail-board strength, and ensures zero abrasion of the tail-board, easy for maintenance.5.Connected movable plate, improves its rigidity and reduces deformation6.Connected thrust bearing, improves its strength and stills itself with small lock shaft, ensures zero abrasion.7.Arch template fully complies with mechanical property, largely improves template strength.8.More reasonable toggle design, speeds and stabilizes mold opening and closing.9.Adjustable movable plate mounting plate, makes the installation easier.
10.Mixed design of T-shape groove and die hole, increases universality of the mold.
Product Parameters

Item		1850JSell
Screw diameter	mm	135	145		160
Theoretical shot volume	cm³	9232	10651		12969
Shot weight (PS)	g	8309	9586		11627
Length/Diameter ratio	L/D	21.1	19.7		17.8
Injection pressure(high pressure and low speed)	MPa	192	166		137
Injection pressure(low pressure and high speed	MPa	149	129		106
Injection rate(high pressure and low speed)	cm³/sec	1253	1445		1760
Injection rate(low pressure and high speed)	cm³/sec	1617	1865		2271
Plasticizing capacity (PS)	g/s	190	226		258
Injection stroke	mm	645
Screw speed	rpm	106		98
Injection unit force	Ton	29.5
Carriage stroke	mm	1100
Clamping force	Ton	1850
Opening force	Ton	184.6
Opening force	Ton	3300
Max. daylight	mm	1700-2550
Clamping stroke	mm	1600*1560
Distance btwn. Tie bars	mm	160*1090
Min mould dimension	mm	750-1600
Mould thickness range	mm	40
Ejector force	Ton	36
Ejector stroke	mm	400
No. of ejector pins	unit	33
Dry Cycle(Euromap 6)	S	8.6
Major motor	kW	143.5
System pressure	MPa	17.5,22.3
No. of heater zones	unit	5+1
Heater input power	kW	92
Ultimate capacity	kw	236.5
Current	A	287.5
Net weight	Ton	100
Oil filling capacity	L	2600

Seller Recommendation



Detailed Photos
Application

Company Profile
FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
