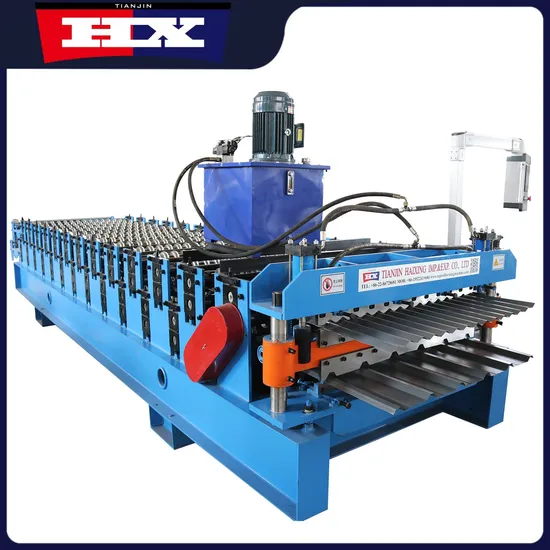

Metal Roofing Roof Panel Roofing Sheet Roll Forming Machinery

Product Description

metal roofing roof panel roofing sheet roll forming machinery
Product Description
metal roofing roof panel roofing sheet roll forming machinery details :
1.This metal roofing roof panel roofing sheet roll forming machinery details is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2.The metal roofing roof panel roofing sheet roll forming machinery is stable,no noise,no shake.
3.Our metal roofing roof panel roofing sheet roll forming machinery can uses galvanized steel sheet, colored armor plate or galvalume plate as the material plate.
4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.

No.	metal roofing roof panel roofing sheet roll forming machinery
1	Suitable to process	Color alu-zinc steel coil
2	Roller	12 Rows
3	Dimensions	6.2*1.65*1.7m
4	Motor Power	4Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58ºC-60ºC
9	Diameter of the roller	Φ70mm
10	Weight	About 5800kgs
11	Main structure of the machine	300H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

The advantage of metal roofing roof panel roofing sheet roll forming machinery
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
Details Images
1.Manual decoiler:
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
2.Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Remarks:Pre-hand with leveling roller
3.Main rollers
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4.Computer Control Cabinet
PLC:Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish
5.Motor driver
Main motor size :4Kw
Brand: The famous brand from Germany or according to customer's need
6.Hydraulic station power
Hydraulic station power: 4Kw, the brand is Lichao, Shanghai
7.Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment
8.Received goods table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces 3meters
metal roofing roof panel roofing sheet roll forming machinery after sales services :
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
