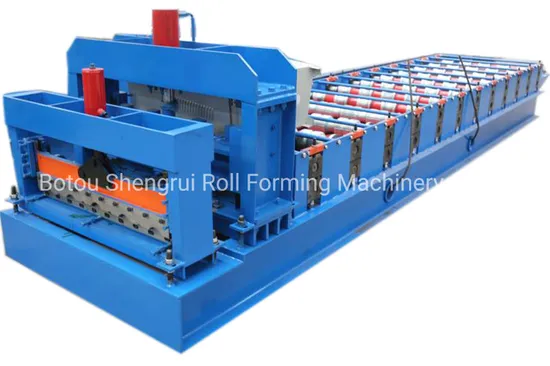

Steel Step Tile Forming Machine /Glazed Tiles Making Machine
Basic Info.
Model NO.
tile
Automatic Grade
Automatic
Structure
Horizontal
Transmission Method
Hydraulic Pressure
Color
Blue or Accordng to Customers′request
Automation
Full-Automatic
Control System
Controlled by PLC
Langauge
English
Cutter Type
Hydraulic Cutting
Advantage
Easy Maintain
Forming Thickness
2.0mm to 3.0mm
Container Type
40 Gp
Colour
Blue or According to Customer Need
Guaranty
12 Months
Technical Support
Whole Life of Machine
Installation
Engineer Available Overseas
Transport Package
Naked Packing
Specification
6.5*1.2*1.2M
Trademark
Shengrui
Origin
Botou
HS Code
84629110
Production Capacity
30 Sets/Month
Product Description
1.Technical data:| Roofing Sheets Roll Forming Machine(Roll Forming,Roll Former ,Steel Sheet Metal Machine) | ||
| No. | Item | Specifications |
| 1 | Coil Width | according to sizes |
| 2 | Diameter of shaft | 70mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 16mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 2.0mm-3.0mm |
| 7 | material of rollers | 45#steel |
| 8 | Cutting type | hydraulic -cutting |
| 9 | Main power | 15kw+4kw |
| 10 | Main frame | 350H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 5 tons |
| 14 | Power | 3 Phase,380 Voltage,50Hz |
| 15 | Dimensions(L*W*H) | About 8.5*1.2*1.2M |
| 16 | Weight | about 9 tons |
2.shipping
3.workshop
4.FAQ
(1)Are you manufacture or factory ?
we are manufacture and we have more than 10 years'experience.
(2)what's your guaranty of machines?and how to make sure quality of machines?
Guaranty of machines is 12 months.and after finish machines,we will supply video of working machines,also welcome to visit our factory and inspection of machine on site.
(3)Engineer available overseas?
our engineer can go to your place for installation of machines,customers need responsible for round -way flight tickets ,accommodation and engineer's salary is 100usd/day.
(4)if spares broken ,how to deal with it?
we can send new spare to you by DHL courier,about 5 to 7days you can receive them.
(5)what's your payment term?
our payment term is 30% advance payment by T/T,other 70% balance payment before shipment.
5.For more information ,pls contact :
