Custom Gantry Machine Center U3020 with Robust Fanuc Control System

Product Description

Product Description
Product Parameters

Item	Unit	U3020
Travels
Gantry frame moves forward and backward X-axis	mm	2000
Main shaft slide moves left and right Y-axis	mm	3000
Up and down travel direction of spindle Z axis	mm	1000
A/C axis positioning (VDI3441)		8
A/C axis repeatability (VDI3441)		4
Worktable
Worktable size	mm	2000*3000
Distance from spindle end to worktable	mm	450-1450
Worktable T-slots(No.-W*distance)	mm	9-22*200
Max.weight on worktable	T/m2	7
Gantry width	mm	3700
Spindle
Spindle specification		HSK-A63
Spindle drive		Motorized spindle
		Y connection	△connection
Spindle speed	rpm	3280	6000
Maximum spindle speed	rpm	8000	20000
Spindle power	kw	11	15
VDI3441 (JISB6338)
Positioning	mm	P0.03(±0.004/300)
Repeatability	mm	Ps0.028(±0.003)
Basic parameters
Spindle power	kw	3.7/6.3
A/C axis rotation angle	o	±110/±360
A/C axis maximum speed	rpm	60
X-axis rail specification		4 piece 4 5 roller
Y-axis rail specification		55roller
Z-axis rail specification		4 piece 4 5 roller
Specification of X-axis ball screw		6320
Specification of Y-axis ball screw		6320
Specification of Z-axis ball screw		5010
X-axis servo motor	kw	4.0*2 piece
Y-axis servo motor	kw	7.0
Z-axis servo motor	kw	7.0
Machine weight	T	42
Dimension(L/W/h)	mm	7565*5595*5306
The company reserves the right to change the above specfiations for products or technologies.

Standard proximity and function
1.FANUC 0i-MF Plus (0)control system	13. Electric cabinet air conditioner
2.HSK-A63 electric spindle	14.Water gun
3.Oil coolant system	15.Air gun
4. Spindle blushing	16.Foundation screw and horizontal cushion block
5.Telescopic cover of triaxial rail	17.Spiral type chip conveyor
6.Handwheel	18.Chain type chip conveyor
7.Automatic lubrication system
8.Oil cooler
9.Transformer
10.Work light
11.Warm light
12.Manual loosening device

OUT LOOK SIZE

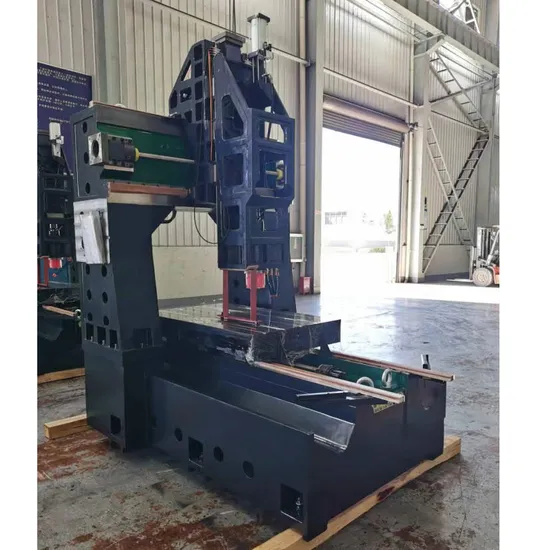

Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
