Durable and Premier DN50mm-DN800mm Mop 3.5MPa HDPE Wire Mesh Frame Pipe and Tube for Versatile Applications Area and The Use of Fire Hose

Product Description

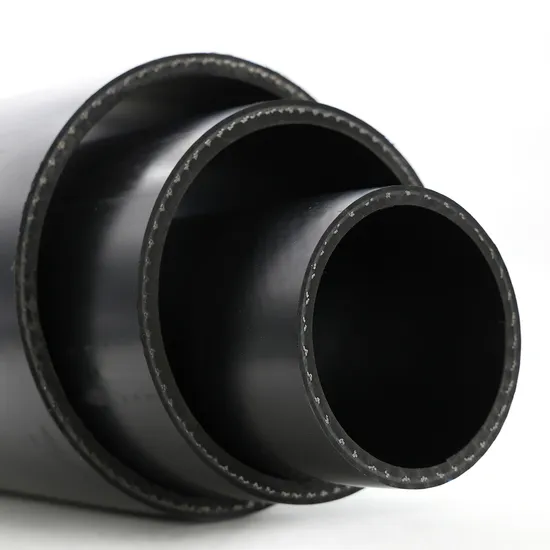

Product Description The wire mesh frame tube, an innovative marvel crafted with high-density polyethylene (HDPE) as its core matrix, boasts a sophisticated design. Utilizing high-performance HDPE modified adhesive resin, it seamlessly bonds the steel wire frame with both the inner and outer layers of HDPE. This meticulous construction endows the tube with extraordinary benefits: exceptional corrosion resistance, non-scaling properties, ultra-smooth low resistance, excellent thermal insulation without wax, impressive wear resistance, and a remarkably lightweight profile. Moreover, it transcends the pressure limitations of conventional PE pipes, offering a staggering maximum pressure capacity of up to 3.5MPa.
This product adheres to the rigorous standard of GB/T 32439-2015, ensuring top-notch quality and reliability.
During transportation, ensure the product remains free from scratches, throwing, violent impacts, oil, and chemical contamination.
Construction: When heating, maintain tube wall thickness ×9-10 seconds. The cooling duration should be thrice the heating time. Only after a successful pressure test should the tube be put into use.
Product Parameters

Nominal diameter(Outer diameter)unit:mm	Nominal pressure
	0.8MPa	1.0MPa	1.6MPa	2.0MPa	2.5MPa	3.5MPa
	Thickness of wall(mm)
50			5.0	5.5	6.0	6.5
63			6.0	6.0	6.5	7.0
75			6.0	6.5	7.0	7.5
90			6.5	7.0	7.5	8.0
110		6.0	7.0	7.5	8.0	8.5
125		6.0	7.5	8.0	8.5	9.5
140		6.0	8.0	8.5	9.5	10.5
160		6.5	9.0	9.5	12.5	11.5
200		7.0	9.5	10.5	12.5	13.0
225		8.0	10.0	10.5	13.0
250	8.0	10.5	12.0	12.0	14.0
315	9.5	12.0	13.0	13.0
355	10.0	12.5	14.0
400	10.5	13.0	15.0
450	11.5	14.0	16.0
500	12.5	16.0	18.0
560	17.0	20.0	21.0
630	20.0	22.0	24.0
710	23.0	26.0
800	27.0	30.0

Important Note:
1. These innovative pipes are primarily designed for use infire safety systems, high-pressure water transport in mining operations, and various other demanding fields..
2. The nominal pressure indicates the highest allowable working pressure for water conveyance at a stable temperature of 20ºC.
3. The weight of the HDPE material is meticulously calculated based on an average density of 0.95g/cm³. The outer diameter and wall thickness are measured to ensure they meet the nominal value plus half of the limit deviation.
Certifications Shandong Jinhong Pipe Industry Co., Ltd. proudly boasts a series of prestigious certifications that underscore our commitment to quality and excellence. We have achieved ISO9001:2015 certification for our impeccable quality management system, alongside ISO14001:2015 certification for our proactive environmental management practices. Furthermore, our dedication to workplace safety is validated by the ISO45001:2018 Occupational Health and Safety Management System certification. Beyond these accolades, we are a recognized member cooperation unit with the State Grid Corporation of China, having secured a distinguished long-term supply contract with this esteemed organization, reinforcing our reliability and industry stature.
Production features The Wire Mesh Frame Tube is an innovative tubing solution crafted with high-density polyethylene (HDPE) as its core matrix. Utilizing high-performance HDPE modified adhesive resin, it seamlessly bonds the steel wire frame to the inner and outer HDPE layers. This unique composition endows the tube with remarkable benefits such as anti-corrosion properties, no scaling, a smooth low-resistance interior, and effective heat preservation without wax buildup. Additionally, it boasts impressive wear resistance and lightweight construction. Notably, it transcends the traditional pressure limits of conventional PE pipes, achieving a maximum pressure threshold of up to 3.5MPa.
Versatile and robust, the Wire Mesh Frame Tube finds extensive application in fire safety piping systems, high-pressure water delivery in mining operations, and numerous other demanding fields.
For pipes with a diameter of DN315mm or greater, the Wire Mesh Frame Tube offers substantial material savings-ranging from 15% to 20%-compared to ordinary PE pipes. This makes it a highly energy-efficient product that is being actively promoted in various industries.
The construction and connection process for the Wire Mesh Frame Tube is remarkably straightforward. Requiring only a small-capacity welding machine, the tube can be efficiently connected, thereby enhancing construction efficiency and expediting project timelines.
Inventory and Transportation
FAQ Q1: What about the sample?
A1: Our samples are meticulously prepared and expertly coated, ensuring top quality. They are promptly delivered to customers through leading international couriers such as DHL, FedEx, and ***..
Q2: What about your payment terms?
A2: We primarily use the T/T payment method, though L/C is also acceptable. Moving forward, we aim to support additional payment terms to cater to our clients' needs.
Q3: How long is the expected delivery time of the product?
A3: For orders below 10,000 meters, we ensure completion within 15 working days. Please note, the final arrival time is contingent on the shipping date.
Q4: Could you use our labels or printings instead of yours? (ODM)
A4: Yes, we can accommodate customer requests for customized labels or printings. However, essential information like outer diameter, wall thickness, PN data, SDR data, production standard, place of origin, and production date must be printed on the pipe.
Q5: Could you offer special package services?
A5: Yes,we can offer packaging services tailored to the customer's requests.Additional fees may apply.It might have some extra fees.
Q6: What is the service life of your product?
A6: Our product boasts an impressive service life of 50 years, provided that proper storage and construction precautions are followed. Failure to do so may result in compromised performance and will be the responsibility of the user.
Q7: How could youguarantee the quality of you product?
A7: We can provide MSDS, COA, and TDS documents upon the customer's request. Additional charges may apply.In addition, we'll take random samples and analyze them. Project site photos Relational production Experience the pinnacle of engineering excellence with each product, meticulously designed to exceed expectations.
