Used Truck-Mounted Concrete Pump Xg Hb58V Concrete Pump Truck.

Product Description

Product Description
Basic parameters
The XG HB58V is a 58-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. It is equipped with advanced technology for high performance and durability. Here's an overview of its features and a reference data sheet.

Category Item Unit HB58V

Overall	Outline dimension	mm	14530×2530×4000
Overall	Overall weight	kg	44000

Key Features:
1. High-Efficiency Pumping: The HB58V features state-of-the-art pumping technology, including full hydraulic reversing and integrated casting hydraulic valve technology, reaching international leading levels.
2. Advanced Design: This model is independently developed by XG and is known for its "safety, reliability, environmental friendliness, and leadership" qualities, leading the domestic industry and reaching international advanced levels in overall performance.
3. Innovative Technology: With multiple industry-first technologies and acumulative patent applications9 items (including 1 invention patent), the HB58V stands out for its revolutionary design, including a curved leg support that offers improved stability and safety.
4. Awards and Recognition: The product has won awards such as the China Construction Machinery Annual Product TOP50 (2020) Annual TOP50 Award.

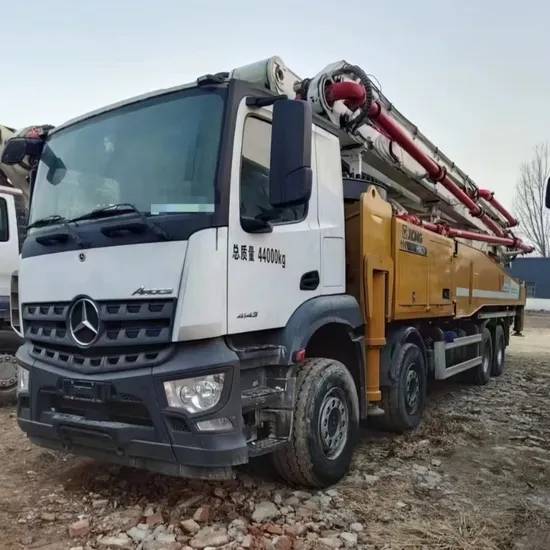

Detailed Photos


Product Parameters
Category Item Unit HB58V

Overall	Outline dimension	mm	14530×2530×4000
Overall	Overall weight	kg	44000
Chassis	Brand	-	Benz
Chassis	Model	-	AROCS4143
Chassis	Wheelbase	mm	2050 + 4300 + 1350
Chassis	Max. power	kW	300
Engine	Emission	-	China V
Theoretical output	-	m³/h	180
Pumping system	Concrete pumping pressure	Mpa	10.2
Pumping system	Theoretical pumping times	Times/min	22 ~ 24
Pumping system	Delivery cylinder diameter × stroke	mm	φ260×2200
Placing boom	Reach height	m	57.5
Placing boom	Reach depth	m	40.5
Placing boom	Slewing radius	m	52.5
Placing boom	Slewing angle	°	±270
Others	Transfer valve type	-	Rock valve/S valve
