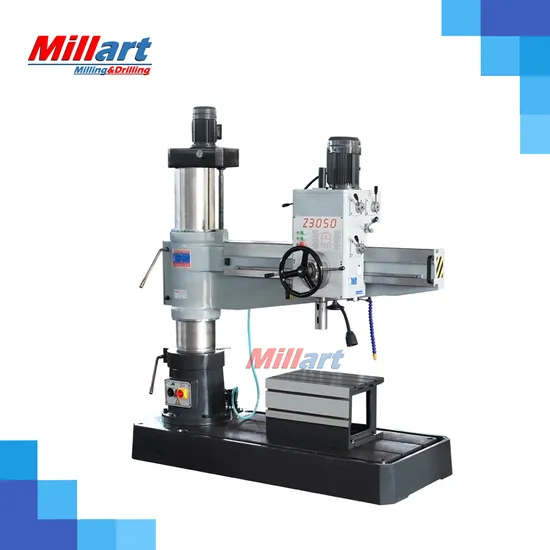

Big Size Manual Vertical Radial Drill Machine Z3050*16 Z3050*16A Radial Bench Drilling Machine for Metal
Basic Info.
Model NO.
Z3050*16 Z3050*16A
Structure
Vertical Drilling Machine
Layout
Vertical
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Capacity
50mm
Spindle Travel
1150mm
Motor Power
4kw
N.W/G.W
2000kg
Packing Size
1535*600*1780 mm
Transport Package
Plywood
Specification
2170*950*2450mm
Trademark
Millart
Origin
Shandong, China
Production Capacity
200unites/Month
Product Description
Product DescriptionTechnical parameter :
Feature :
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
Technical parameter :
| Model | Z3050x16 | Z3050x16A |
| Max. Drilling dia. (mm) | 50 | 50 |
| Distance from spindle nose to base (mm) | 1150 | 1170 |
| Distance between spindle axis and column face (mm) | 360-1600 | 410-1600 |
| Spindle travel (mm) | 220 | 315 |
| Spindle taper | MT5 | MT5 |
| Spindle speed range (rpm) | 78-1100 | 49-1350 |
| Spindle feeding range (rpm) | 0.10-0.56 | 0.1---1.0 |
| Rocker rotary angle(°) | 360 | 360 |
| Main motor power (kw) | 4 | 4 |
| Movement motor power (kw) | 1.5 | 1.5 |
| diameter of vertical column(mm) | 280 | 280 |
| Net weight (kg) | 2000 | 2100 |
| Overall dimension (mm) | 2170*950*2450 | 2280 1000*2350 |
Sandard accessories:
Box type worktable
Drill chuck
Taper sleeve
Tools
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
