Bis Standard Steel Pipe Production Line 88.9 mm - 219 mm Outer Diameter

Product Description

Product Description

ALL SOLUTIONS FOR STEEL PIPE/TUBE PRODUCTION



Machine Model :ZY-219

Raw material	hot rolled steel, galvanized steel
Round tube outer diameter	88.9mm-219mm
Wall thickness Round tube	2.0mm-8.0mm
Tube welding speed	50m/min

Steel Pipe Production Line production process

According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.

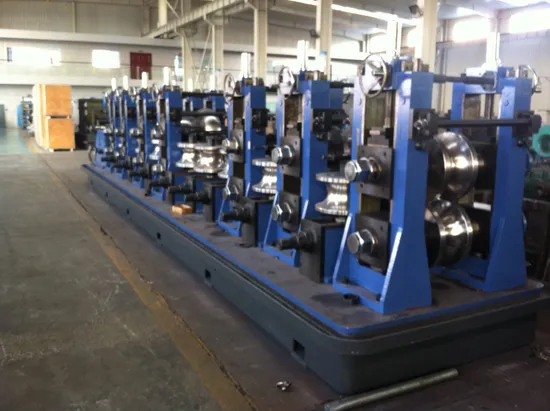

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table








Technology Advantage

pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Production Line manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.

Brief of Steel Pipe Production Line application

Steel Pipe Production Line as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.

Market distribution

At the beginning, we are manufacturing and selling the Steel Pipe Production Lines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Production Line has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.


Steel Pipe Production Line specification
Accordingly to the market demands.
We are given the standard models as blew, and this is for your reference only,
the production range and main technical can be adjustable suppose your company have special requirement.

Steel Pipe Production Line Specification
Mill Model	OD range (mm)	Thickness range(mm)	Line Speed(m/min)
ZY-16	7.6-16	0.3-1.0	120
ZY-20	10-25.4	0.3-1.5	120
ZY-32	12.7-38.1	0.6-1.8	120
ZY-45	16-50.8	0.7-2.0	110
ZY-50	20-63.5	0.8-3.0	90
ZY-60	25.4-76.2	1.0-3.2	80
ZY-76	31.8-88.9	1.2-3.75	80
ZY-89	33.4-101.6	1.2-4.5	75
ZY-125	50.8-130	2.0-5.0	60
ZY-165	76.2-168	2.0-6.0	50
ZY-219	88.9-219	2.0-8.0	50
ZY-273	89-273	3.0-12.0	40
ZY-325	89-325	3.0-12.7	40
ZY-406	114-406	4.0-16.0	40
ZY-508	219-508	4.0-19.1	40
ZY-610	273-610	4.0-19.1	40
ZY-660	273-660	4.0-22	40

Our Company
Zhangjiagang Zhongyue Metallurgy Equipment Technology Co.,Ltd is located in Xiangshan Road,Jiangang Town,Zhangjiagang City,Jiangsu Province,China.With the registered capital of RMB20,000,000 yuan,the company specialize in manufacturing high-frequency precision welded pipe lines,H-Beam steel pipe line,slitting machine,cold roll forming machine,cold rolling machine,angle steel machine,cold cutting saw machine etc...At present,the annual production capacity is more than 150 sets.
During more than ten years of continuous effective development, the company has already become quite well competitive in term of market share,technology,human resources and geographical location in its field.To maintain its competitiveness in the ever fierce competing market, the company has kept upgrading itself by improving innovation system ,establishing human resources platform, building harmonious relationship with customers,improving quality of product and full-range of services.Hence,now,as one of the most popular and favorite vendors of our customers,we are the most advanced and play a leading role in field of domestic market for product quality and achievement in new products R&D and market development.
The company products are widely applied in the industries of welded pipe manufacturing,sports products,fitness equipment,medical apparatus and instruments,children's goods,furniture,household electrical appliances,vehicles,ship building,petroleum transportation and power station etc...
