Hyundai 15ton Hydraulic Wheel Excavator Hw150 in Stock for Hot Sale

Product Description

Product Description

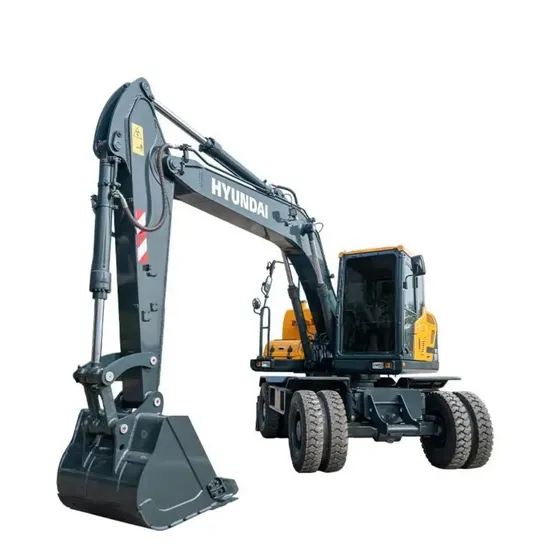

15Ton Wheel Excavator HW150
Advantages and highlights: 1. F4.5 Engine Complies with Tier4 Emission Standards The F4.5 is a Tier 4, 4-cylinder engine with a compact design, no need for urea, and low maintenance costs. In the 1300rpm-1500rpm range, the F4.5 engine delivers higher torque and better fuel economy.
2. International Famous Brand Axles and Transmission
Equipped with well-proven and highly recognized Z-F axles and transmission, featuring standard walking and merging functions to enhance equipment's climbing capability and ensure outstanding travel performance.
3. Enhanced Cooling Capacity
Optimized cooling system significantly improves heat dissipation, enhancing equipment performance.
4. Hydraulic Pipes
High-quality Hi-Grade pipelines with excellent heat resistance and durability, reducing the occurrence of oil leakage.
5. Pre-filter Equipped with a maintenance-free air pre-filter as standard, ensuring clean air entering the engine, significantly extending the engine's lifespan.
6. Standard Emergency Stop Switch
A one-key emergency stop switch is located below the seat, allowing for emergency operations without entering the cab, ensuring the safety of personnel and equipment.
Product Parameters
Operating Weight Bucket Capacity Emission Engine Model Rated Power Max. Torque Main Pumps Rated Flow Implement Circuit (Power Boost) Tail Swing Radius Ground Clearance Boom Length Arm Length Max. Digging Reach Max.Digging Depth Max. Digging Height Max. Dumping Height Min. Swing Radius

Model	HW150
13.74 ton
0.58 m³
T4
F4.5
125 kW/168 hp/170 ps/2200 rpm
670 N.M/1300 rpm
2*160/2000 l/min
350(380) kgf/cm²
2350 mm
340 mm
4600 mm
2100 mm
7920 mm
4820 mm
8500 mm
6070 mm
2655 mm

Detailed Photos
