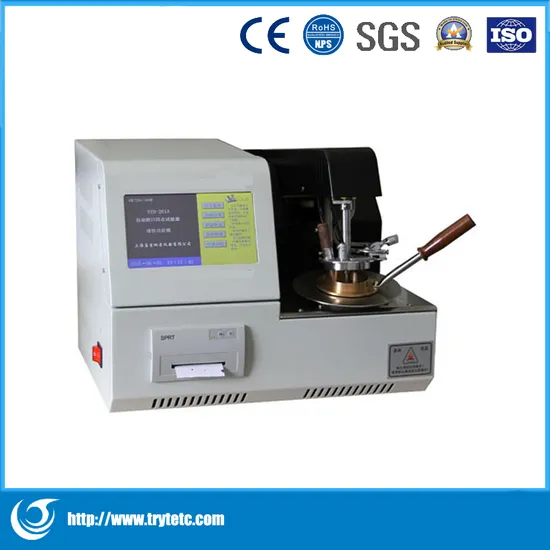

Automatic Pmcc Flash Point Tester-Flash Point Tester-Oil Testing Instrument

Product Description

Touch Screen:
LCD Screen: Automatic Pmcc Flash Point Tester-Flash Point Tester-Oil Testing Instrument
Summary:This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products. Main technical features:1. Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash temperature, sample number, atmospheric pressure and date can be set by prompt menu. 2. Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be modified. 3. 120 groups of data can be saved. 4. Automatically calculate the corrected flash point when the pressure differs from standard atmospheric pressure. 5. Differential detection. Automatic correct the system bias. 6. Automatically open cover, ignite, detect and print result.
7. Safe and easy to operate.
Main technical specifications:1. Power supply: AC(220±10%)V, 50Hz. 2. Flash point determination: Range: Ambient to 300ºC. Meet requirement of GB/T 261-2008 Meet requirement of GB/T 261-2008 Resulotion: 0.1ºC 3. Heating rate: Procedure A: (5~6)ºC/min Procedure B: (1~1.5)ºC/min Automatic control and manually adjustable. 4.Stirring rate: Procedure A: (90~120)RPM, Procedure B: (250±10)RPM Automatic control and manually adjustable. 5. Igniting mode: Igniting source: gas(or other civilian fuels)Electric ignition. Gas flame diameter: 3.2mm~4.8mm 6. Ambient temperature: ≤ 40ºC 7. Relative humidity: ≤ 80% 8. Maximum power consumption: 500W
9. Overall dimension: 410mm×360mm×310mm
Packing:
Company Information:
As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
