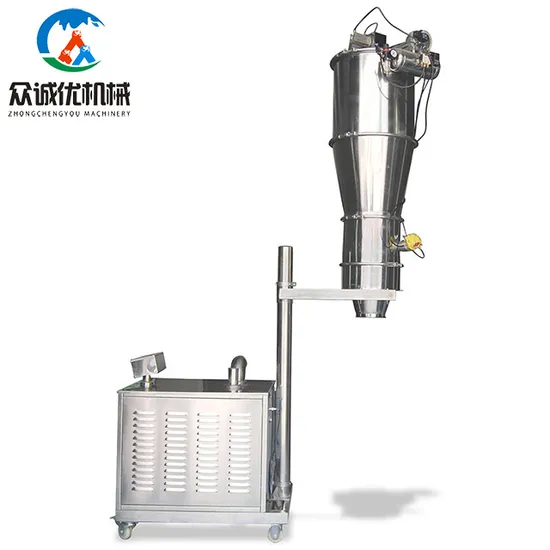

Industrial Stainless Steel Transport Vacuum Feeder Pneumatic Vacuum Conveyor Machine for Powder Granules Food Flour
| US$1,300.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZKS-1
Structure
Conveyor System
Material
Stainless Steel
Material Feature
Oil Resistant, Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport
Condition
New
Product Name
Vacuum Feeder
Applicable Industries
Powder
After-Sales Service Provided
Online Support
Advantage
Save Labor High Efficiency
Lead Time
10-15 Days
Type
Moving Assembly Line
Certificate
CE ISO
Color
Customized
Support Customization
Supported
Trademark
ZHONGCHENGYOU
Origin
Xinxiang, Henan
HS Code
8428399000
Production Capacity
100sets/ Month
Packaging & Delivery
Package Size
100.00cm * 160.00cm * 160.00cm
Package Gross Weight
260.000kg
Product Description
Product descriptionThe vacuum conveyor is a kind of vacuum conveying equipment for powdered materials, granular materials, and powder-granule mixtures. The vacuum feeder uses electrical pump as power,it can automatically transport various materials to the vibrating screens, hoppers of silos, packaging machines, injection molding machines, crushers , and can also directly convey to mixing machine/ reactor/ pelletizer/ mill machine from containers. By this machine, we could reduce the workers' working strength and prevent the dust pollution; this could ensure the productions meet the GMP' s requirements.
Working principle
Vacuum conveyors use whirlpool pump as the power, and make the suction and all the system is in a negative pressure condition. So that materials are conveyed from suction to hopper. The material and air flow are separated in the hopper by filter. After the separation, material is conveyed to the receiving device. Feeding and unloading are switched by reversing valve. And the reversing valve is controlled by the control-center.
Product parameters
| Model | Capacity(kg/h) | Power(kw) | Diameter(mm) |
| ZKS-1 | 350 | 1.5 | Φ220*570 |
| ZKS-2 | 600 | 2.2 | Φ220*780 |
| ZKS-3 | 1200 | 3 | Φ290*850 |
| ZKS-4 | 2000 | 4 | Φ420*1150 |
| ZKS-5 | 3000 | 5.5 | Φ420*1250 |
| ZKS-6 | 4000 | 5.5 | Φ420*1350 |
| ZKS-7 | 5000 | 7.5 | Φ450*1550 |
