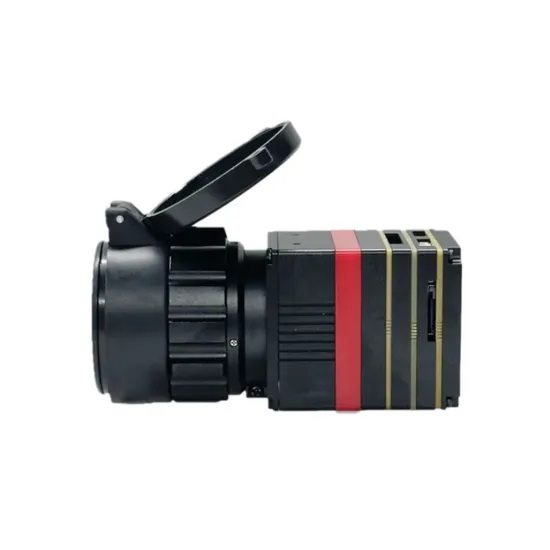

384X288 19mm Manual Onvif Protocol Support Thermal Imaging Sensor
Basic Info.
Model NO.
CQ-LTML4C12-19MH
Output Signal Type
Digital Type
Production Process
SemiConductor Integrated
Material
Ceramics
IP Rating
IP67
Certification
ISO
Customized
Customized
Resolution
384X288
Frequency Range
8um-14um
Pixel Size
12um
Lens
19mm Manual
Analog Output
CVBS
Network
100m Network Port
Transport Package
Carton
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
1000 PCS / Month
Product Description
Features:. Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.. The highest resolution can reach 384*288, real-time image output. NETD sensitivity≤35 mK @F1.0, 300K. Supports network access and has rich image adjustment functions. Support RS232, 485 serial communication. Support 1 audio input and 1 audio output. Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function. Supports Micro SD/SDHC/SDXC card storage up to 256G. Rich interfaces for easy function expansion| Model | CQ-LTML4C12-19MH |
| Detector type | VOx Uncooled thermal Detector |
| Effective Pixels | 384x288 |
| Pixel size | 12μm |
| Response band | 8~14μm |
| NETD | ≤35mK(@F1.0, 300K) |
| Lens | 19mm manully focus lens |
| Focus | Manual |
| FOV | 13.8° x 10.3° |
| Focusing range | 2M~∞ |
| Interface Protocol | ONVIF (Profile S, Profile G), SDK |
| Resolution | 25fps (384x288) |
| Network Interface | 100M network port |
| Analog Output | CVBS |
| Communication serial port | RS232, RS485 |
| Power supply | DC12V±10% |
| Operating temp. and humidity | -30ºC~60ºC, humidity less than 90% |
