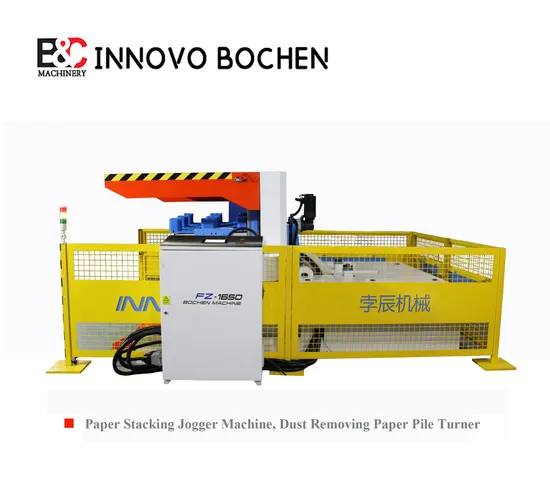

Automatic Paper Pile Turner Jogging Aligning Machine with Dust Removing

Product Description

Full Auto Paper Pile Waste Removal Machine Turning Turner Vibrating for Prepress Printing Plant
Technicial parameter:

Model	1250	1650
Max sheet size	800*1250mm	1220*1650mm
Loading weight	1200kg	1900kg
Platform width	1400mm	1800mm
Platform depth	850mm	1235mm
Max pile height	1600mm	1600mm
Min pile height	830mm	830mm
Power	12KW	17KW
Length	2790mm	2790mm
Width including operating rod	2060+1340mm	2060+1340mm
Height	2260mm	2260mm
Machine weight	3500kg	4500kg

Machine brief introduction:
Paper pile turning machine is also called paper turning machine or paper turning machine. Its functions include turning paper, blowing air, removing impurities, drying, aligning and breaking paper.
Based on years of experience accumulation and continuous technological innovation, INNOVO Company guarantees the advancedness and stability of products. The body design of the INNOVO paper stacker makes it stable and durable.
Equipped with high-efficiency servo motor and speed reducer to realize automatic paper pile rotation operation, coupled with an enhanced hydraulic system, greatly improved the efficiency of paper pile operation.
Touch screen operation panel, paper stack turning, rotating, paper breaking, dust removal and other functions can all be completed with one key on one operation panel.
Use before printing
Alignment: When the paper stack is tilted, the wind is blown through a large air volume, and the paper is quickly aligned with the efficient vibration. In this process, the damaged paper can be removed to ensure a neat stack.
Dust removal: It can remove impurities such as paper wool and paper scraps, improve the surface quality of the paper to be printed, and reduce the possibility of double-feeding
Efficiency: Due to the improvement of the surface quality of the paper, the speed of the printing press can be increased by 3-5%, which improves the labor productivity
Long-term effect: greatly reduce the entry of impurities such as paper wool and paper scraps into the printing press, and extend the life of the printing press
Finished product: the rate of waste and defective products due to impurities such as paper wool and paper scraps can be reduced, and the finished product rate can be increased by 2-3%
Use after printing, transfer station, paper cutting and die cutting
Drying: It can remove powder spray, accelerate ink drying, and at the same time quickly reduce the smell of printed sheets due to the ink solvent, prevent the occurrence of quality problems such as sticking and smudging behind, and save a lot of manpower
Machine transport and packing
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Company:
_____________________________________________________________________
Certificate:
______________________________________________________________________
FAQ:
______________________________________________________________________ Q1: Are you a manufacturer? Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years. Q2: Do you have stock products to sell? We manufacture machines in batch. So most of machines have in stock, please check with us before ordering. Q3: How about installation and training? Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser. Q4: How about warranty? Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear. Why choose us?
_____________________________________________________________________ 1.Our brand "INNOVO" is well-known in our domestic market and over 70 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc. 2.Genuine products with excellent quality. Company has always proved the 100% quality. 3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas. 4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving. 5.Less cost of purchase: We are the manufacturer directly. 6.Attendant customers queries promptly.
