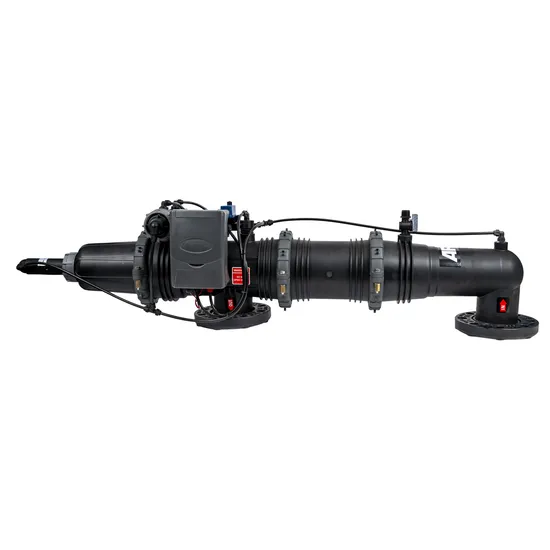

Arka Auto Backwash Self-Cleaning Screen Filter for Efficient Drip Irrigation

Product Description

Product Description AUTO Screen Filter System
PRODUCT DESCRIPTION

Type:	Other Watering & Irrigation	Place of Origin:	Fujian, China
Brand Name:	ARKA	Model Number:	F90ASC
Material:	Plastic	Size:	123*50*50cm
Product name:	3'' AUTO Screen Filter	Usage:	Agriculture irrigation
Function:	Filtration Water Treatment	Valve Type:	No

Model	Connections ( Flange)	Filtration Grades (mesh)	Max Flow (m3/h)	Max Pressure (bar)	G.W. (kg)
F90ASC	3'' Flange	80/120	50	10bar	15.00kg

SUPPLY ABILITY: 10000 pieces per month
PACKING&DELIVERY

Packaging Details:	Wooden box
Port:	Fuzhou

FEATURE & ADVANTAGE
1.Manufactured in polypropylene
2.Resistance to hemical products, wear-resistant
3.Chip built-in controller to collect water pressure data, achieve unmanned automatic perform
4.Continuous filtering for water supply during back flush
5.Smart back flush auto-procedure setting by the discrepancy of water pressure between inlet&outlet
6.Manual setting for the back flush procedure regulary
7.Efficient water saving in auto-flushing with minimum pressure 2.8 bar and flow rate 5 L/s minmum

THE UNIQUE DISC TECHNOLOGY

1. ARKA adopt colorful & thin polypropylene discs of micron precise level. The discs are diagonally grooved on both sides in opposite directions.
2. A series of discs are stacked and compressed on a specially designed filter spine.
3. The grooves of any two adjacent discs with opposite direction pressed together,then it will create a series of crossing points which form multiple particle traps.
4. In the filtration process, the force of the spring along with the differential pressure firmly compresses these discs together and providing exceptional filtration efficiency.
5. Filtration occurs as water percolates from micron rating,there are multiple crossing points in each track, creating distinctive in-depth filtration.
HOW IT WORKS
OUR SERVICE
1. OEM/ODM services are accepted.
2. Technical support and design personalized solutions by the engineer team.
3. Accept sample order.
4.Quality tracking & service.
5.Provide the free catalog for you.
6.Various irrigation products for your choice.
7.Warranty: 1 year warranty from the shipping date.
COMPANY PROFILE
1. Founded in 2008, Fuzhou Arthas Fluid Equipment Technology Co.,Ltd. is a professional enterprise with the integration of R&D, production and sales.
2. Our company prossess 30000 m2 modernized industrial plants including the molding, plastic injection, metal stamping, electronic appliances and integrated production.
3. Our products are exported to Europe, U.S.A., North America and Southeast Asia etc. , and have been offering OEM and ODM service for many famous companies worldwide.
4. We have passed the ISO9001 quality system certificate and CE certificate.
5. Strong capacity in supplying chain managerment, integrated production and manufacturing.
6. Unique innovation in the development and design of water recycling system control integration.

SUPPLY ABILITY: 30000 pieces per month
PACKING&DELIVERY

Packaging Details:	Cartons
Port:	Fuzhou

FEATURE & ADVANTAGE
1.Manufactured in polypropylene
2.Resistance to hemical products, wear-resistant
3.Clamp design can be easily removed filter cleaning
4.Micron filtration precision, can easily filter impurities in water
5.Different interface sizes and traffic can meet different scenarios and customer requirements.
THE UNIQUE DISC TECHNOLOGY

1. ARKA adopt colorful & thin polypropylene discs of micron precise level. The discs are diagonally grooved on both sides in opposite directions.
2. A series of discs are stacked and compressed on a specially designed filter spine.
3. The grooves of any two adjacent discs with opposite direction pressed together,then it will create a series of crossing points which form multiple particle traps.
4. Filtration occurs as water percolates from micron rating,there are multiple crossing points in each track, creating distinctive in-depth filtration. OUR SERVICE
1. OEM/ODM services are accepted.
2. Technical support and design personalized solutions by the engineer team.
3. Accept sample order.
4.Quality tracking & service.
5.Provide the free catalog for you.
6.Various irrigation products for your choice.
7.Warranty: 1 year warranty from the shipping date.
COMPANY PROFILE
* Founded in 2008, located in Fuzhou, china
* A Professinal Environmental equipment manufacturer.
*Strong capacity in supplying chain managerment, integrated production and manufacturing.
*Unique innovation in the development and design of water recycling system control integration.
*We have passed the ISO9001 quality system certificate and CE certificate.
*The world's leading water saving technology & High cost performance
EXHIBITION SHOWS
CERTIFICATE
