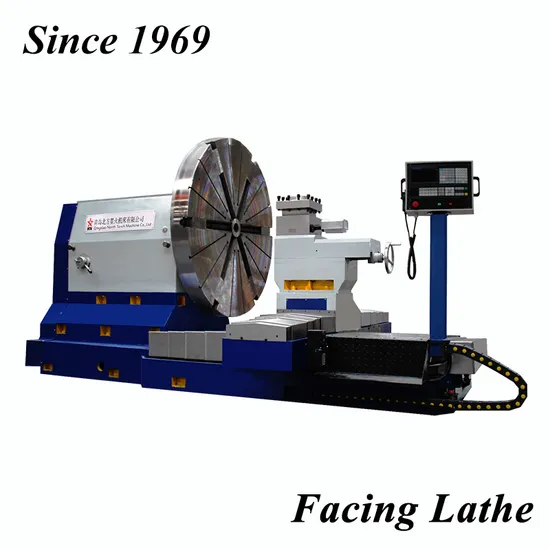

Professional CNC Lathe for Turning Flange, Tyre Mold, Disc Plate

Product Description

China Professional Facing CNC Lathe (Conventional type is also avaliable)
For Turning Metal and HDPE Flange,Disc Plate, Automotive Wheel, Cylinders, Long Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc
1. Outstanding Characteristics of CNC Lathe
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese Bearing, ABB Motor& transmission box/gear box, etc. We can also configurate per customer's special request and demands. Our Engineers can design different configurations according to different workpieces characteristics.
1.) It has functions including screw thread, conical surface, curved surface, internal boring, etc.
2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.
3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.

Our Principle : Maximize Customer's Profitability under the minimum invest cost.
EAC, CE, SGS, BV Certificate

Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.

2. Technical Parameters of horizontal cnc lathe.
3D drawing of cnc lathe.

Name	Unit	CK64100	CK64125	CK64160	CK64200	CK64250	CK64300
Swing Diameter over Machine Bed	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	Φ800mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck-jaw seat length	mm	Embedded	Embedded	Embedded	500mm	500mm	500mm
Work-piece Length	mm	500mm	750mm	750mm	750mm	1000mm	1000mm
Work-piece Weight	T	1T	2T	2T	3T	3T	5T
Spindle Diameter	mm	φ190mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle Speed	r/min	10-300 r/min	10-200 r/min	4-160 r/min	4-160 r/min	3-106 r/min	3-106 r/min
X Axis Stroke	mm	500mm	625mm	800mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	500mm	750mm	750mm	1000mm	1000mm	1000mm
X Axis Rapid Feed Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min	2000mm/min	2000mm/min
Z Axis Rapid Feed Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		240*240	240*240	280*280	300*300	300*300	300*300
Cutting Tool Shank Size	mm	32*32mm	32*32mm	40*40mm	40*40mm	40*40mm	40*40mm
Feed Control	/	Servo motor	Servo motor	Servo motor	Servo motor	Servo motor	Servo motor
Main Motor Power	Kw	11KW	15KW	18.5KW	18.5KW	22KW	37KW
Machine Dimensions	mm	3000*1810*1770	3180*1910*1870	3940*1980*1900	4190*2670*2450	4250*2770*2800	4400*3300*3300
Machine Weight	mm	5T	6T	9.5T	11T	12.5T	15T

Rermarks:
1. The above 6 models of CNC Lathe are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features.
2. This series horizontal Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. PACKAGE AND SHIPMENT OF CNC LATHE, HORIZONTAL LATHE.
4. After-sale Service and Maintenance of CNC Lathe.
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
