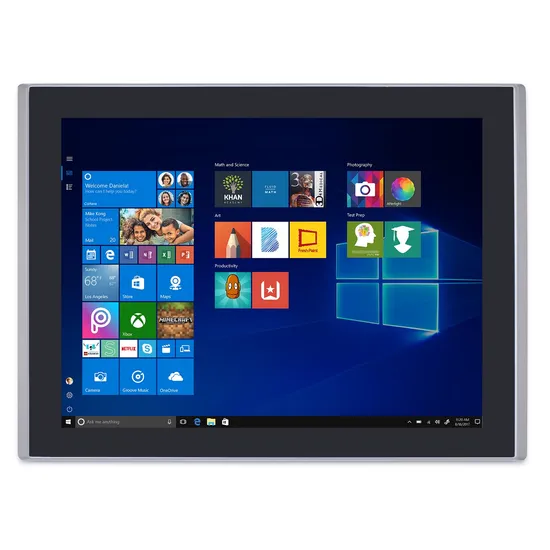

IP65 Industrial Touch Panel Embedded 15inch Android Windows Capacitive Computer Panel PC

Product Description

Product Description Details Images

Processor	Intel Core i5-8250U
Memory	Onboard DDR4 8G memory
Storage	support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series)
Lan	2*GbE RJ45 Intel@i211-AT
	3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface
	2*DB9-RS232/422/485 COM
	2*3-wire RS232/485 COM phoenix terminal
	2*3-wire RS232 COM phoenix terminal
Interface Port	1* Audio line-out
	2*8Ω 1W Speak out(optional)
	1*phoenix terminal DC 9-36V Input
	1*AT/ATX Switch
	1*HD output
	1*14bit GPIO(Optional)
WIFI	1x full height Mini PCI-E,onboard SIM slot, support 3G/4G
Resolution	16.2M Color, 1280*800 ( 1280*600 optional)
Panel	TFT LCD (support 12.1" 15.1" 17" 19" 21")
Backlight Hour	(LED )30,000
Brightness	250cd/m²
Visual	-85~85°(H) -85~85°(V)
Type	5 wire resistance type
Dimen	399*248*55MM(for 15.6")
Weight	NW: 4.6KG, GW: 6.0kg(15.6" weight, also support 12.1" 15" 17" 19")

Fully enclosed design, IP65 grade water-proof and dust-proof, fanless design, silent and 24*7 hours stable working, 9V to 36V wide voltage power input, suitable for most industrial requirement. Onboard 4G memory chip, accept OEM to 1 DDR3 memory slot, support max 8GB RAM. Onboard 1 SATA slot, 1 mSATA slot, 1 Mini PCI-e and SIM slot, support 3G/4G wifi moudule. Product Usage HYSTOU Panel PC Company Introduction Hystou is a professional manufacturer and exporter of desktop mini PC. OEM and ODM orders are welcomed. The more you purchase, the cheaper the price. Our company in Shenzhen Welcome to visit our factory! Workers are assembling mini pc. Packing&Shipping Packing List: Normally we use the carton box, 5 or 10pcs per carton 1 x Panel PC 1 x Power adapter(correct power plug based on buyer's country) 1 x VESA bracket(some model not support) 1 x Sata power cable and data cable.(some model just support one Msata) 1 x Warranty card & user manual FAQ
