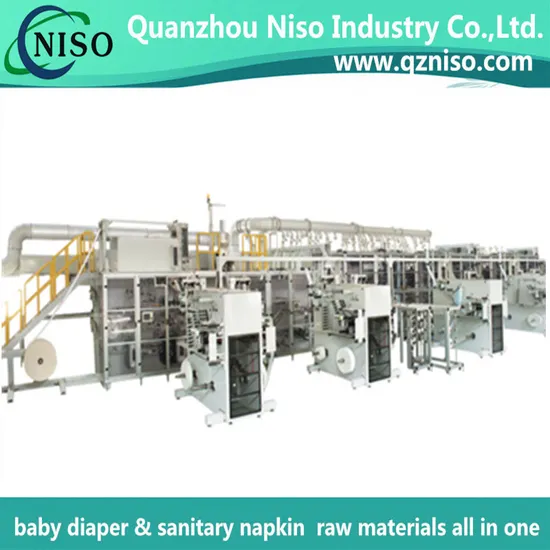

China Full-Servo Underpad Making Machine Manufacture (CD220-SV)

Product Description

China Full-servo Underpad Making Machine Manufacture (CD220-SV)
Quick Details of Underpads Machine

Condition	Used
Product Type	Underpads Machine
Processing Type	Manufacture of High Speed Underpads machine in China (CD220-SV)
Place of Origin	Fujian, China (Mainland)
Model Number	CD220-SV
Certification	CE,ISO certificates
Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas
Stable:	yes
Finished product:	Underpad
Control system	full-automatic for underpads machine manufacture
Waste rate	less than 2%
Operators	6-8 operators including packing underpads

Underpads Machine Function & Parameter:
1. Outputted products from this machine: Bed Mattress
2. Designed speed: 300 meters/min
3. Production speed: 220meters/min(width 600mm) 200meters/min(width 800mm)
4. Overall size of equipment: 22m(L)×3.5m(W)×2.5m(H)
5. Machine power: approx 300KW (380V, 50Hz)
6. Weight of equipment: about 70,000kgs
7.The main force bar of the machine frame:150*150*8 square tube; 8. Thickness of the faceplate is 30mm
9.Cutter bracket is adopted with dia 45 of steel bracket and pushing backboard.
10.Waste rate;≤ 2%

Can produce 3-ply (PE film, fluff pulp, non-woven fabrics) or 5-ply (PE film, down tissue, fluff pulp, upper tissue,non-woven fabrics) bed mattress & pet mattress with high speed

* Dimension of the raw material, Parameter
1. Cotton core: 34g/m2 (include upper and down tissue, wood pulp which can use treated pulp, untreated pulp and semi-treated pulp, as well as recycled treated pulp)
2. Non-woven fabrics: 9g/m2
3. PE/PP: 15g/m2
4. SAP: 8g/m2

* Raw material unwinding diameter and weight:
1. Upper and down tissue Roll Diameter: Φ960mm Weight: 125kg
2. Non woven fabrics Roll Diameter: Φ960mm Weight: 125kg
3. PE/PP Roll Diameter: Φ600mm Weight: 60kg
4. Wood pulp Roll Diameter: Φ1500mm Weight: 500kg

* Finished product folding methods
1. C folding and two or three folding
2. Z folding and two or three folding
3. W folding and two or three foldin
* Packaging & Delivery
Packaging Details: Seaworthy wooden cases and plastic film packaging
Delivery Details: within 120days underpads Machine manufacture

Why Choose us?
Profession design
Our factory has in machinery industrials for 15 years,improve andinnovate technology from Japan Italy all the time.
Quality
All the spare parts used according to the contract, original German & Japan & Italy & USA brand.
Processing
CNC processing, special surface processing, anti-glue processing.
Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Excellent After-sale Service
1. You can send technician to learn machine operation before the machine delivery for 1-2 month. We can offer food and accommodation.
2. When machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
3. If you need one Chinese technician work for you, we can help you find one work for you.
4. Life-long after service for the baby diaper machine

Other raw materials of sanitary pads& diapers available:
1.PE film and cloth-like film materials
2.PP/MAGIC Side/Frontal Tape
3. Hot-melted glue(Spandex/Structure)
4.FLUFF PULP(treated/untreated,SAP)
5.Jumbo tissue paper(Upper/Lower Tissue Papdsxer)
6.Non-Woven (Topsheet-Hydrophilic N.W./ leakage-Hydrophobic N.W.)
7.Spandex
8.Release tape for sanitary napkin
9.Released paper (winged/back of sanitary pad)
10.Sap absorbent paper
11.Outside PE bags/Polybags
12.Elastic waistband
13.ADL
