Plastic HDPE Pet Bottle Flakes Washing Recycling Pelletizer Crushing Washing Machine

Product Description

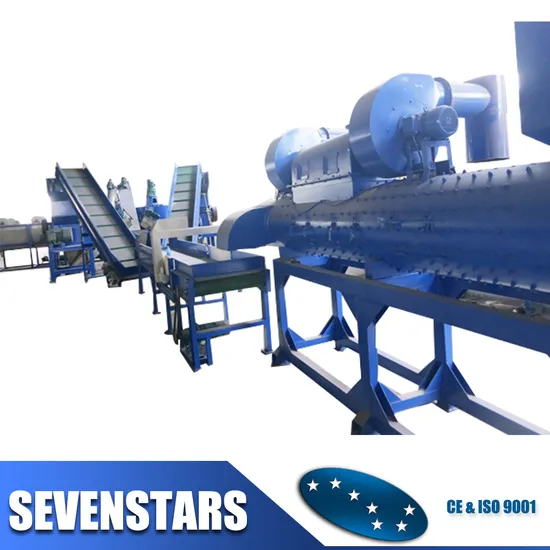

New type High output plastic bottle recycling machine / PET bottle recycling line / plastic bottle washing line with low power consumption
This PET bottle scrap washing line mainly used for dealing with waste PET bottle, HDPE Bottle, LUMP, PP barrel etc.
To separate PET bottles to flakes from PE/ PP label, cap, oil, garbage, protect the environment, avoid white pollution.
This PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PET bottle flakes crushing, recycling and washing production line can easily wash and recycle waste PET bottle flakes. Waste and dirty PET bottle flakes can be treated step by step by this facility. It is special for washing PET bottles flakes. We can help to attach equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after be washed.
Work flow of plastic bottle recycling machine
Conveying raw material--Crushing with water-- Feeding --No. 1 Rising washer--Feeding --Agitating washer--Feeding--Horizontal frication washer --No. 2 Rising washer --Feeding--No. 3 Rising Washer--Feeding--Dewater machine--Pump conveying system--Hopper

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 100-320ppm	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm
