Efficiency Parcel Dws System Fast Scan 3D Volume Camera Measuring Dimensioning Weighing Scanning Dws Sorting Machine

Product Description

Main Products of Gosunm Logistics Equipment 1. Loop Crossbelt Sorter
2. Linear Cross Belt Sorter
3. High Speed Narrow Belt Sorter
4. Dynamic DWS + Sorter Machine
5. Dynamic DWS
6. Static DWS Machine
7. Wheel Sorter Machine
8. Environmental Prolection Packaging
9. High-Speed Printing and Labeling Machine
10. Customized Logistics Parcel Sorting Solution Line
11. Warehouse Management System

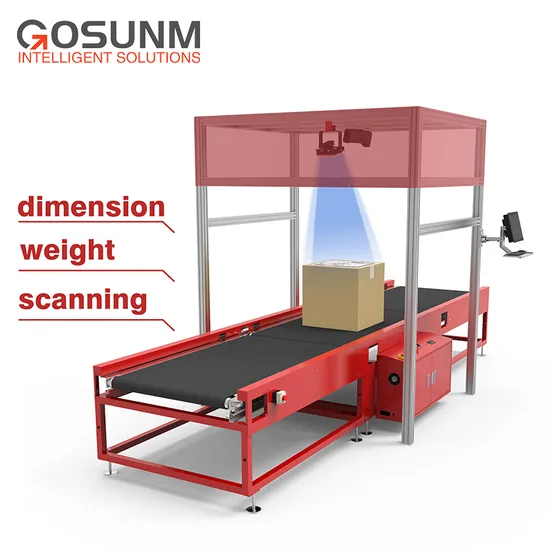

What Is Dynamic DWS
Dynamic Dws Equipment Is an Integrated Intelligent Logistics Equipment That Can Automatically Measure the Volume of Goods (Packages), Dynamically Weigh the Goods, And Dynamically Scan Codes on Goods. D Stands for Dimension, W Stands for Weight, And S Stands for Scanning. This Device Can Be Connected to the System to Automatically Upload the Collected and Processed Package Data, And Sorting Equipment Can Be Added at the End as Needed to Improve the Processing Speed and Improve Efficiency.

Equipment Technical Parameters
Power Supply						AC220V, single phase, 50-60Hz
Weight Range						0.1-60kg
Weight Accuracy						±50g
Dimension Range						(L*W*H): 1000*900*700mm-100*100*100mm
Dimension Accuracy						±10mm
Speed						Liner speed 1.1.5meters/second
Barcode Density						0.3mm or 12mil

Barcode Location					on top of the parcel
Barcode Types					1D code: Code 39.Code 128,Code 93, ITF25,CodaBar.EAN8,EAN13. UPCA.UPCEetc; 2D code: OR,DM, etc

Application Fields
E-Commerce, Express Delivery, Postal Service, Fresh Cold Chain, Distribution Center, Food, Beverage, Medicine, 3c Electronics, Daily Chemical and Other Industries
Automatic Sorting System of Large Distribution Center
Workflow
The Workflow Can Be Inserted into the Picture Shown on the Right. Taking Storage and Transshipment as an Example.
After the Truck Arrives at the Unloading Area, It Is Connected to the Telescopic Belt Conveyor and Docked with the DWS Equipment. According to the Set Program, The Telescopic Belt Conveyor Will Send the Package to the DWS Equipment.
When the Packace Is Dynamically Weighed. It Will Simultaneously Collect the Packae's Volume. Weight and Face Sheet Information, And Then Enter the Sorting Process
Features
1.Efficient Code Reading, Easy to Identify Face Sheet Information
2.Multi-sided Code Reading Can Be Freely Combined, Optional 3-Sided, 5-Sided, 6-Sided Code Reading
3.Through Its Own Algorithm, Efficient and Accurate Operation,Modular Combination of Various Functions
4.It Is Convenient to Connect with the Existing Equipment of the Site
Advantages
1.The Package Processing Speed Is Fast, And It Can Easily Handle 6000 Packages per Hour
2.The Code Reading Rate Can Reach 99.99%
3.Measure the Length and Width with High Precision :10mm
4.The Barcode Width Minimum 10mil
Guangdong GOSUNM Logistics Technology Co., Ltd
a joint venture established by three powerful logistics technology companies in China, is commited to sharing the experience of intelligent detection and sorting in logistics, e-commerce, and warehousing in China. lt has two production bases in Dongguan and Foshan, and an operation center in Hangzhou. The number of companies in the company is Over 200 people, production area over 20,000 square meters.
Customized Solutions
Provide customized design services one-on-one based on customer needs and data analysis
Assembly and Debugging
Provide One-Stop Services for Machine Transportation Assembly, Deployment, And Debugging
Professional Training
Provide Systematic Training for Machine Operators in Enterprises
After-sale Service
A Professional and Strong Operation and Maintenance Team, With Technical Guidance, Remote Services, And On-Site Services
