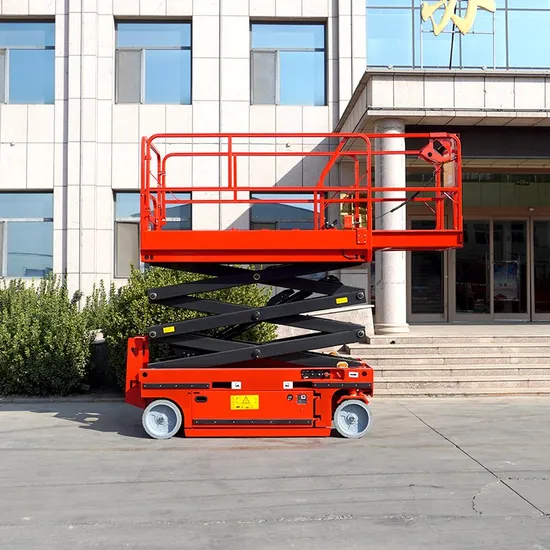

Four Tires Trailer Electric Scissor Lift Hydraulic Lifting Working Platform
Basic Info.
Model NO.
YG520
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Safe Working Load
450kg
Extended Platform Safe Working Load
230kg
Maximum Number of Workers
3workers
Maximum Working Height (a)
12m
Maximum Platform Height (B)
10m
Overall Length (C)
2450mm
Machine Width (D)
1380mm
Machine Height (Guard Rails Not Folded)
2573mm
Working Platform Size (F)
2270X1120mm
Lifting Motor
48/5kw
Machine Running Speed (Closed)
2.4km/H
Storage Battery
6V*8/200ah
Total Weight
2850kg
Specification
2270X1120mmX1300mm
Trademark
Yulu
Origin
Henan
HS Code
8428109000
Product Description
Product DescriptionProduct Parameters
| Basic parameters | UNIT | Detail |
| safe working load | Kg | 450Kg |
| Extended platform safe working load | Kg | 233Kg |
| Maximum number of workers | / | 3 |
| Maximum working height (A) | m | 12m |
| Maximum Platform Height (B) | mm | 10m |
| Overall length (C) | mm | 2450mm |
| Machine width (D) | mm | 1380mm |
| Machine height (guard rails not folded) | mm | 2573mm |
| Machine height (guard rail folded) (E) | mm | 2260mm |
| Working platform size (F) | mm | 2270X1120mm |
| Platform extension dimension (G) | mm | 900mm |
| Minimum ground clearance (folded state) | mm | 150mm |
| Minimum ground clearance (lifting state) | mm | 19mm |
| Minimum turning radius (inner wheel) | mm | 0m |
| Minimum turning radius (outer wheel) | m | 2.7m |
| Lifting motor | V/KW | 48/5Kw |
| Machine running speed (closed) | Km/h | 2.4Km/h |
| Machine running speed (lifting) | Km/h | 0.8Km/h |
| Ascent / descent speed | / | 70/62sec |
| storage battery | V/Ah | 6v*8/200Ah |
| charger | V/A | 48V/25A |
| Maximum gradeability | / | 30% |
| Working maximum allowable angle | . | 2°/3° |
| leveling angle | left/right | 15° |
| leveling angle | left/right | 9° |
| Total Weight | Kg | 2850Kg |
Detailed Photos
Company Profile
FAQ
1: How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
2: How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
3: Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.
4: Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
5: Can I visit your company?
Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
