Fast Speed Output Hand Disinfection Sprayer Container Pet Pharmacy Medicine Bottle Injection Stretch Blow Moulding Machine/Transparent Bottle Making Machine

Product Description

FROM YEAR 1996
JASU MACHINERY & MOULD

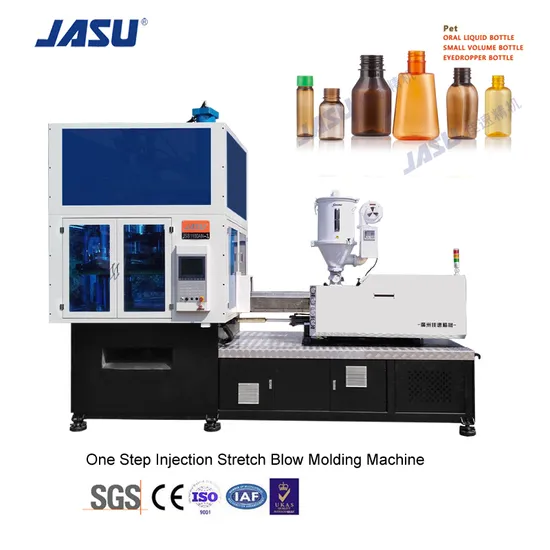

***SINGLE STAGE / ONE STEP FULLY AUTOMATIC INJECTION STRETCH BLOW MOLDING MACHINE ISBM EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Fast Speed Output Hand Disinfection Sprayer Container Pet Pharmacy Medicine Bottle injection stretch Blow Moulding Machine/transparent bottle making machine
1.PRODUCT DESCRIPTION
2. JASU MACHINERY ISBM MACHINE TYPE PARAMETER

Item			Unit	Machine Type
				ISB 800N-3	ISB 800AN-3	ISB 1100N-3	ISB 1100AN-3	ISB 1100AN-100T-3
Injection Part	Screw Diameter		mm	40	50	40	50	50
	Screw L/D Ratio		L/D	20.5:1	20.5:1	20.5:1	20.5:1	24:1
	Screw Speed		r/min	0-190	0-150	0-190	0-150	0-150
	Theoretical Injection Capacity		cm3	238	481	238	481	481
	Injection Pressure		MPa	174	176	174	176	176
	Max. Hydraulic Pressure		Kg/cm	140	140	140	140	140
	The Actual Injection Quantity		g(ps)	225	452	225	452	452
			Oz	8	16	8	16	16
	Screw Stroke		mm	190	245	190	245	245
Clamping Part	Blow Clamping Force		KN	80	80	150	150	150
	Clamp Tonnage		KN	400	400	600	600	1000
	Wheel Diameter		mm	800	800	1100	1100	1100
	Max. Height	PP, PET, PETG, Tritan, PS, PC	mm	200	200	200	200	200
		PC, PETG, Tritan, PS		220	220	220	220	220
	Open Vertical Mode Trip		mm	570	570	570	570	600
Others	Max. Pump Pressure		MPa	16	16	16	16	16
	Servo Motor		Kw	22	22	22	22	22
	Mode Opening & Mode Locking Use Ordinary Motor (Double Pump)		Kw	22	22	22	22	22
	Electric Power		Kw	8.9	12.2	8.9	12.2	12.2
	Tank Volume		L	420	420	420	420	420
	Dimension of Machine		m	4.2*1.75*3.4	4.2*1.75*3.4	4.5*1.95*3.4	4.5*1.95*3.4	4.5*1.95*3.4
	Machine Weight		T	5.5	6	8.5	9	9.5

--Parameters are subject to change without prior notice.--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements
3.JASU MACHINERY ONE STEP INJECTION STRETCH BLOW MOLDING MOLD
Mould and tooling, we have mould workshop ourselves, advanced CNC machine and smart design engineers,we can treat different material and size products from different customers over the world.
4. ISBM MACHINE PROCESSING MODE AND APPLICATION
The machines are three stations, injection preform, blow /stretch blow and product release. The raw material comes from the hopper to the injection
screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,
Then the product will rotate to release station and drop down, it is fully automatically cycle rotation working mode
For PET , PETG high transparent,much thinner wall, cosmetic bottle , PET wide neck jar, PET pharmaceutical bottle For PP high transparent, baby feeding bottle, sport bottleFor PCTG, Tritan drinking water bottle, sport bottle.
For PC, PS,PMMA, SAN lamp cover, LED light lampshade,Christmas flash light, garden and street light.
5.JASU ONE STEP INJECTION STRETCH BLOW MOLDINGN MACHINE ADVANTAGES ARE AS FOLLOWS:
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product; Stretch Blow:
Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;Product Release:Equipped with a standard ejector.
7. Auxiliary machine,we will equip you with the necessary quality auxiliary machines to ensure the production plan running well,we can supply you one-stop service
6.JASU PLASTIC FINISHED PRODUCTS DISPLAY
7.COOPERATIVE PARTNER
8. OUR ADVANTAGES
We are leader manufacture for single stage/one step plastic injection stretch blow molding machine and mold
Your specialist consultant
Monica


FAQ:
Q1: Are you a factory or trading company?A1: We are established in 2003, a actual factory and manufacturer in the line of injection stretch blow molding machine for 18 years.
Q2: Where is your factory located? How can I visit you?A2: Our factory is located in Panyu District, Guangzhou, Guangdong Province, China, about 48 minutes by high-speed railway from Hong Kong. 5 minutes driving away from Shiqiao subway station. We can book hotel for you and pick you up from CAN BAIYUN airport or Guangzhou south railway station.
Q3: How about the payment term?A3: Advancement (subject to our marketing strategy and both parties' discussion) and settle the balance payment prior to delivery.
Q4: What about your main market?A4: Our machines were sold well in China, also exported and enjoyed a good reputation among customers from Europe, Russia, Southeast Asia, Middle and South America, Africa etc. Our customers widely spread over Russia, Italy, Poland, Turkey, Netherlands, Sweden, Bulgaria, Brazil, Ecuador, Thailand, India, Myanmar, Malaysia, Vietnam, Cambodia, Egypt, Algeria, South Africa, Ivory Coast, Philippines, Bangladesh......
Q5: How does your factory do regarding quality?A5: Quality is the most important principle. JASU people always attach great importance to quality controlling from the very beginning to the very end.Our factory has passed ISO and CE certification. Patents and many other certificates obtained also tells this. Click to learn more
Q6: Do you have any other service about your products?
A6: We have a lot of experience on making complete "Turn-Key" projects and specifications for our clients. Also we have a fixed service system
Pre-Sales Service
* Inquiry and consulting support.
* Free product design.
* Visit our Factory.
Warranty
* The machine and mold guarantee for one year with repair/ free replacement of defective parts.
* Spare parts of machine components, mold components and tools are shipped along with the machine.
After-Sales Service
* JASU wants to make sure you are getting the very best out of the machine and mold. After delivery, we will send our engineer to your plant to train your staff how to use the machine well, until we get approval by the customer.
* Remote assistance to help you solve problems in case of machine system failure.

Contact us to share more videos and details.
