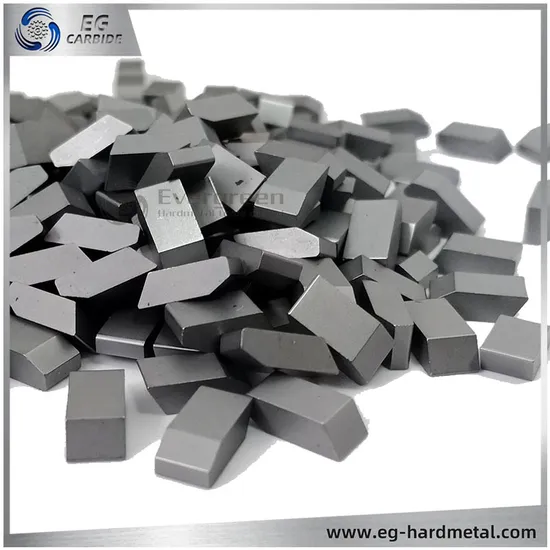

Woodworking K05, K10, K20, K30 Tungsten Carbide Saw Blade/Saw Tips Saw Teeth

Woodworking K05, K10, K20, K30 Tungsten Carbide Saw Blade/Saw Tips Saw Teeth

US$40.00 1 kg (MOQ)

Basic Info.

Model NO.
Customized
Automatic Grade
Automatic
Precision
Precision
Certification
ISO
Customized
Customized
Condition
New
After-sales Service
Whatsapp/Wechat 24 Hours Online
Product Type
Tips
Material
Tungsten Carbide
Carbon Content
Yg6 Yg8
PCD
Yg6 Yg8
Et
No
Hole
No
Products Name
Tungsten Carbide Wear Parts Carbide Tips
Tolerance
+1 +2
Grind
Blank
MOQ
1PCS
Transport Package
Carton
Specification
Customized
Trademark
Evergreen
Origin
China
HS Code
846691000
Production Capacity
1000000/Month

Product Description

Customers Feedback K01, K05, K10, K20, K30, K40, P40, M30 tungsten carbide saw blade/saw tips
Product Description
Tungsten carbide tips has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, we are provides customer superior quality carbide tips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.
Properties Of Grade
The application range of cemented carbide tips blade
1, cemented carbide cutting saw blade used for hardwood, recycled wood and aluminum alloy.
2, cemented carbide cutting saws for plywood, density plates and sandwich plates.
3, carbide cutting saw suitable for steel.
1. Production of 0.4 um ultrafine tungsten carbide.
2. The hardness of the product is as high as 93.5. it has good wear resistance.
3. High frequency welding of welding wire.
Product Name
 Carbide saw tips used for cutting HDF
Material
 Co+WC 100% Virgin Raw Materials
Color
 Nickel white/Black/Gray
Standard
 DIN GB ISO JIS BA ANSI
Used
 Brazed on the wood-working saw blade for cutting HDF


Features of cemented carbide saw tips blades
Grade
 Physical and mechanical properties
 ISO Code
 Applications recommended
 Proposal for welding
Density
g/cnV
 Hardness
HRA(HV)
 TRS Mpa
YG6
 14.6-
15.0
 ≥90.0
 ≥ 1800
 K20
 For the cutting of ordinary wood
 use resistance welding.and the temperature should be not too high
YG8
 14.6-
14.9
 ≥89.5
 ≥1900
 K30
 For the cutting of ordinary wood, also for aluminum
 use resistance welding.and the Temperature should be not too high
YG6X
 14.7
-15.0
 ≥92
 ≥ 1800
 K10
 Applies to the cutting of the timber
 recommend the high-frequency welding

3. High frequency welding of welding wire.2. The hardness of the product is as high as 93.5. it has good wear resistance.
Saw tips-European style
LxWxT(mm) α° γ° β°
L W T
7.5 2.5 2.8 3.0 3.2 3.4 3.6 3.8 4.0 4.2 4.4 4.5 5.2 6.0 2.5 28 70 5
7.5 2.8 3.2 3.5 3.7 4.5 5.0 5.6 6.0 6.5 2.4 30 50 0
8.0 2.4 2.8 2.9 3.0 3.1 3.2 3.3 3.1 3.5 3.6 3.8 3.9 4.0 2.3 28 70 5
8.0 4.3 4.4 4.5 4.8 5.0 5.2 5.5 6.0 6.8 8.0 2.5 28 70 5
8.0 2.8 3.0 3.3 3.5 3.8 4.1 4.2 4.6 5.0 5.2 5.5 10.0 3 25 45 0
8.5 2.8 3.0 3.3 3.4 3.5 3.6 3.8 4.1 4.2 4.3 4.6 5.0 6.0 2.5 28 70 5
9.0 3.6 4.3 4.5 5.2 5.5 2.7 28 45 5
9.0 3.1 3.3 3.5 3.6 3.8 4.3 4.5 4.7 5.2 5.5 2.8 6.0 2.7 28 70 5
10.0 3.4 3.5 4.3 6.5 2.5 20 68 0
10.0 3.5 3.7 3.9 4.0 4.3 4.5 4.7 5.0 5.5 6.0 2.8 28 70 5

Saw tips-European style
LxWxT(mm) α° γ° β°
L W T
10.0 6.5 7.0 7.5 10.0 2.8 28 70 5
10.0 3.5 3.8 4.3 4.5 4.7 4.8 5.0 5.3 5.4 5.5 6 3 15 72 0
10.5 3.0 3.5 3.8 7.0 2.3 28 70 5
10.5 3.0 3.3 3.4 3.5 3.6 3.8 4.0 4.1 4.3 4.4 2.5 28 70 5
10.5 4.5 4.6 5.2 5.5 6.5 2.5 28 70 5
10.5 3.0 3.4 3.5 3.6 3.8 4.1 4.3 4.5 4.6 4.7 3 28 70 5
10.5 4.8 5.0 5.3 5.5 5.6 6.0 6.5 7.0 7.5 14.5 3 28 70 5
10.5 3.5 3.9 4.0 4.2 4.3 4.4 4.5 4.6 4.7 4.8 3.5 28 70 5
10.5 5.0 5.3 5.5 5.8 6.0 6.5 7.0 8.0 8.5 9.0 10.5 3.5 28 70 5
10.5 3.5 3.9 4.0 4.1 4.3 4.5 4.7 4.8 4.9 5.1 3.5 39 59 5
10.5 5.5 6.5 6.5 7.0 9.0 3.5 39 59 5
10.5 4.1 4.8 5.0 5.5 6.0 6.5 7.5 8.5 9.5 11.0 3.5 30 75 0
12.0 4.5 4.6 4.7 5.1 5.5 5.8 6.0 6.3 6.5 7.0 3.5 30 45 10
12.0 8.0 8.5 10 12.5 17.0 3.5 30 45 10

Saw tips-European style
LxWxT(mm) α° γ° β°
L W T
12.5 4.0 4.5 4.8 5.0 5.4 5.5 5.9 6.2 6.3 6.5 7.0 7.5 10.1 3.0 28 70 5
12.5 4.8 5.2 5.3 5.4 6.0 6.3 6.5 6.8 7.0 7.5 3.5 28 70 5
12.5 4.5 5.0 5.5 6.0 6.3 6.5 6.8 7.0 7.5 8.0 9.5 12.5 4.0 30 70 5
13.0 4.0 4.3 4.5 5.0 5.2 5.5 5.8 6.0 6.3 6.5 4.0 30 45 5
13.0 7.0 7.5 8.0 8.2 8.5 9.0 10.0 11.0 13.0 4.0 30 45 5
13.0 4.4 4.8 4.9 5.2 5.4 5.7 5.8 6.0 6.3 6.5 4.0 30 60 5
13.0 6.7 7.0 7.5 8.5 10.0 4.0 30 60 5
13.0 4.0 4.5 4.8 4.9 5.0 5.3 5.5 6.0 6.5 6.8 4.0 40 60 3
13.0 7.0 7.5 8.0 8.5 10.0 4.0 40 60 3
13.0 5.0 6.0 7.0 8.0 9.0 10.0 12.0 5.0 35 45 0
14.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 4.0 30 70 0
14.5 10.0 11.0 12.0 12.2 13.0 14.0 14.2 15.0 16.0 4.0 30 70 0
14.5 16.2 17.0 18.0 19.0 20.0 4.0 30 70 0
15.5 8.0 9.5 12.0 13.0 5.0 30 0 0

Saw tips U.S-Canadian style
Code (inch)
L W T
CWB 7050-CWB 7500 0.281 .050-.500 0.78
CWD 7050-CWD 7500 0.312 .050-.500 0.093
CWE 7050-CWE 7500 0.375 .050-.500 0.093
CWF 7050-CWF 7800 0.5 .050-.800 0.125
CWG 7050-CWG 7800 0.375 .050-.800 0.125
CWH 7050-CWH 7800 0.344 .050-.800 0.125

Code (inch)
L W T
WA 7050-WA 7500 0.250 .050-.500 0.062
WB 7050-WB 7500 0.281 .050-.500 0.078
WC 7050-WC 7500 0.281 .050-.500 0.093
WD 7050-WD 7800 0.312 .050-.800 0.093
WE 7050-WE 7800 0.375 .050-.800 0.093
WF 7050-WF 7800 0.500 .050-.800 0.125
WG 7050-WG 7800 0.375 .050-.800 0.125
WH 7050-WH 7800 0.344 .050-.800 0.125
WQ 7050-WQ 7800 0.375 .050-.800 0.156
Code (inch)
L W T
WA 8050-WA8500 0.250 .050-.500 0.062
WB 8050-WB8500 0.281 .050-.500 0.078
WC 8050-WC8500 0.281 .050-.500 0.093
WD 8050-WD8800 0.312 .050-.800 0.093
WE 8050-WE8800 0.375 .050-.800 0.093
WF 8050-WF8800 0.500 .050-.800 0.125
WG 8050-WG8800 0.375 .050-.800 0.125
WH 8050-WH8800 0.344 .050-.800 0.125
WQ 8050-WQ8800 0.375 .050-.800 0.156
Code (inch)
L W T
CWD-R/T7050-7500 0.312 .050-.500 0.093
CWE-R/T7050-7500 0.375 .050-.500 0.093
CWF-R/T7050-7500 0.500 .050-.500 0.125
CWG-R/T7050-7500 0.375 .230-.270 0.125
Products Showcase
Usage Purpose
Facility Showcase

machining performance. If there is any interest please feel free to let us know, free samples are available.
Contact Us
Annie
+86 19873332042
