Eeyelog 2688p Wireless Motion Detection GPS Wearable Video Recorder F1 with IR

Product Description

Product Description

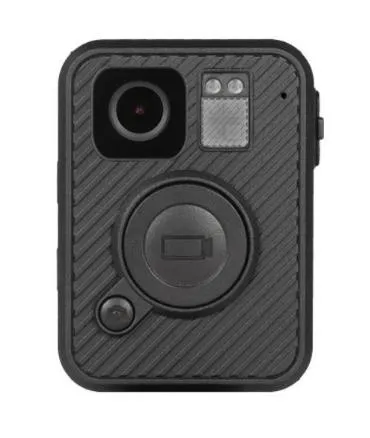

Eeyelog Model		F1 body worn camera
Chipset		Ambarella H22
Size	Demension(mm)	77*56*23mm
	Weight with gps	136g±5g
Video	Pre-recording	30 secons/ 60 seconds (Customizable)
	Video resolution	2688*1512 30P2560×1440 30P2304×1296 30P 1920×1080 30P1280×720 30P848×480 30P
	Video split time	5Min/15Min/30Min
	Video format	MP4 H.264 / MP4 H.265
Photo	Photo size	5M/20M/25M/30M/40M
	Snap Shot	Take pictures during recording or in stand-by
Lens	Angle	140°
Battery	Battery capacity	Built-in 3100mah
	Battery life(gps/ir/lcd off, normal temp, H.264)	12 hrs @848*480 30P 11.5hrs @ 1280x720P 30P 10.5 hrs @1920*1080 30p 10 hrs@2304*1296 30p 9.5 hrs@2688*1512@30P
	Charge time	Approximate 4 ~4.5 hours
Features	Take picture while video recording	Yes
	Digital zoom	Yes
	Wi-Fi	Yes
	GPS	Yes
	4G	N/A
	Infrared night vision	High quality night vision
	Storage (Memory)	Micro SD Class10 16G/32G/64G/128GB (Standard 32GB)
	TFT screen	2 inches LCD screen
	Waterproof	IP65
	White light	Yes
	Pre - recording	OFF/ON
	Loop-recording	OFF/ON
	Sound volume	0~12
	Time zone	-12~12
	Password protecting	Yes
	Watermark	User ID, Time and date Stamp,GPS coordinates embedded into Video
	Mulit langauges	Portuguese,English,Russian, Japanses, Polish, French, Spanish etc
Temperature	Storage temperature	-20ºC~60ºC
	Store humidity	15%~90%
	Working temperature	-20ºC~60ºC
	Working humidity	15%~90%
EIS		Yes
USB Cable Type		USB 2.0
Standard Accessories		USB cable, Chest clip, Adapter, Charge Station, Shoulder clip,User Manual.2 removable battery
Packing list		Natural black box packing,Each set size: 18.6*15.5*7.4cmEach set weight:580g~640gPacking detail: 20 sets/ctn,CTN size: 39.5*39*32.5Each Carton G.W :14~15 kgs/ctn

Body Worn Camera Function Show
GPS module
F1 body camera with Wifi
High quality night vision
Waterproof
IP66 ~ IP68 ( can be customized) A LED camera with IP66 waterproof level is able to withstand water with high-pressure during the test as well as in real life conditions. You can install and leave such an appliance in areas with heavy rains or powerful water jets without worrying about possible damages since you're assured that no harmful quantities of water will be able to penetrate it.
140° Wide Angle Lens
EIS( Electronic Image Stabilization)
Motion detection
Extreme HD 1440P
H.265/H.264 Free Switch
Loop recording
