Double Wire &Single Wire Fully Automatic Diamond Mesh Chain Link Fence Making Machine Factory

Product Description

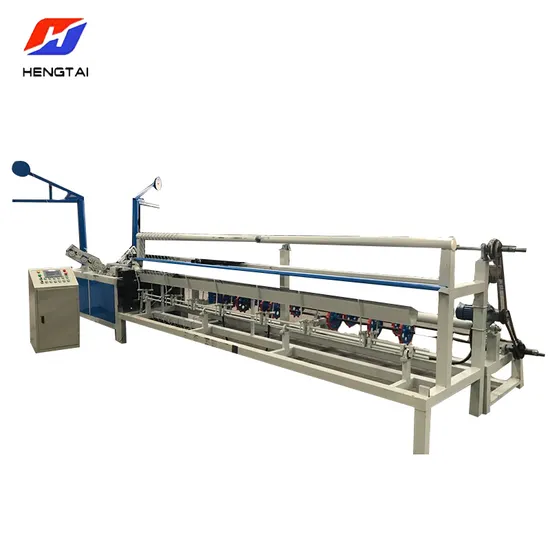

Double Wire &Single Wire Fully Automatic Dimamond Mesh Chain Link Fence Making Machine

Working Principle
1. The wire is taken in from the pay-off stand and passed through the dies where the diamond size takes place.Different gap sized.
2. After passing from the die, the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process.
3. Once the stitching is complete, the woven is manually glided down to enable the next switch to take place.
4. The chain link is automatically wound to form rolls when the desired length is setted.
5. One side or both side of the end of net hole is twisted or with burr in edge.
6. Use rolling side machine to make it into rolls.
Advantage
1. The machine is controlled by PLC automatic controller, so only one person is needed to
operate it.
2. One wire feeding which can reduce the breakdowns.
3. Wide width weaving scope: 1.3-4.5mm.
4. The high productivity for this machine can be 100m²/h.
5. The width scope can be 600-4000mm, and we can customize it for you.
6. The mesh size can be 25x25-120x120mm, and can be changed according to the mould.
Usage
The product is wildly used as prevent for road, railway, airport, residence district, seaport,
garden, feeding and husbandry.
Main Parameter:

Wire Diameter	1.3-4.5mm	Mesh Size	25x25-120x120mm
Width	600-4000mm	Production	60-120 m²/h
Voltage	380V 415V 50HZ 3phase	Motor	3.8KWX1 servo motor,1.5KWX3,0.75KWX3
Exterior size	3800x2400x1500mm	Weight	2000kgs

Double Wire Type
Single Wire Type
