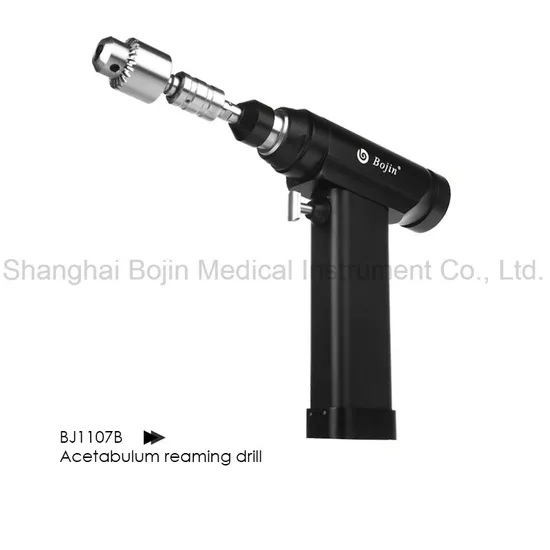

Bojin Medical Surgical Acetabulum Reamer Drill (BJ1107B)

Product Description

Parameter:

Output power	≥75w
Speed(r.p.m)	0-280
Oscillations (osc/min)	/
Torque(Nm)	6.5
Operation(V) voltage	14.4
Sterilization	135°C
Swings (°)	/
Noise(db)	≤40

Notes:

1.Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the

temperature is over 135 ° C ,the motor will be damaged.

2.Normal bone drill can only hold drill bits less than 6mm,acetabulum

reaming drill with big torque,rpm is around 300,canulate drill is used

with nail or K wire ,rpm is around 600.

3.The battery need to be get out of the pwer tool after surgery. Otherwise

the small automatic discharge of the electric will make the life of the

battery short.

4.The battery cannot be sterilized ,it is not autoclavable.

5.The cranial bur must be washed right after the surgery by purger in

order to aviod the blood stick in the bur,then we should make it dry.

6.The battery space in the handpiece of the tool should not have any

water,after sterilization.

7.The cranial bur blade is made of medical stainless steel,in order to

avoid broken,so it is flexible and not very hard,it is easy to be attrite,

we suggest each blade only use for 1 surgery.

About us
Established in 1993 and headquartered in Shanghai, Bojin, as an advanced orthopedic equipment
manufacturer and solutions provider, Bojin focuses on the development and marketing of orthopedic-purpose
motor products, X-ray imagescopes, treatment apparatus, and supporting surgical tools/parts. It has more than
one hundred types of orthopedic products under 8 series, which have received QC certification of 3C, ISO9001,
ISO13485, CE of the EU, and FDA Registry 3008787426. Its mission is to satisfy the needs of patients and
medical care with innovative high-tech products and therefore become a promoter of people's orthopedic health.
It has built a healthy sales and services network thanks to its 200 dedicated employees in the marketing
companies or teams in more than 4countries and regions across North America, Europe and Asia. Its products
are used in more than 60 countries and, in particular, in more than 20000 Chinese medical institutions 70%
of which are 3A-rated hospitals.
