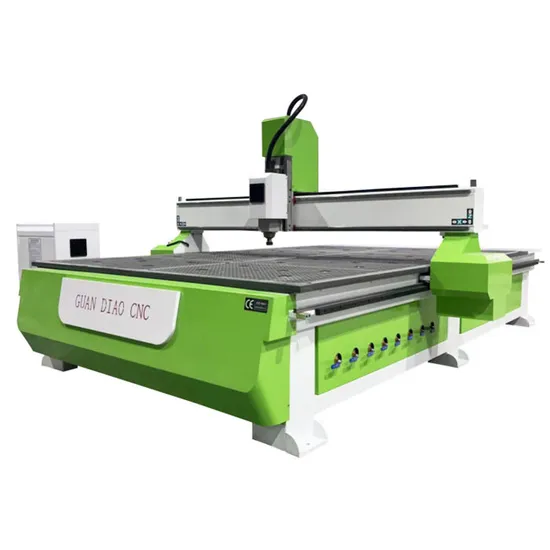

Two Spindle Wood Cutting Engraving Carving CNC Engraver

Product Description

CK1325 2 heads wood MDFaluminium engraving machine is working size is: 1300x2500mm, spindle power is: 2.2kw/1.5kw/3kw4.5kw and so on , if you just to do the work is 3D embossment and engraving work. less time to cutting and want to prove the high effency, then please choose the 6 heads one spindle wood cnc machine. we can according customers requirments to produce the machine.
We has the 4 spindle 4 heads machine, 3heads , 3 spindle machines, 6 heads 6 spindle machines or as customers requirments to produce this machine. It fit for the customer who want to cutting and engraving on the hard wood/ MDF and other materials, has a high effency. if you want to engrave, jsut choose the 2.2kw/1.5kw one spindle 4headsor 3 heads ....
If you want to cutting less than 30mm thickness hard wood or MDF.. Choose the 3 spindle , 3 heads or 4/6 is ok . it aslo can cut more than 30mm, but not one time to cut down, just using 2 or 3 or more time to cut down directly. then if more than 50mm, choose the big power of the spindle 5.5kw/4.5kw/7.5kw is ok .
More exactly informations , please send me a letter , i am waiting for your kindly enquiry.
1.Main introduction#6mm thickness heavy duty steel tube for machine's body, and 8mm thickness for the gantry, the machine structure is strong and stable.
#6 sets spindles with 6 sets inverters, every inverter has a switch, can flexibly choose the spindles work separately or totally, very suitable for mass processing work, can increase the working efficiency.

2.Top Quality Components
We use top quality components for the machine, such as CS water cooling spindle, Fuling Inverter, Yako Driver, Hiwin linear and so on, to keep the machine in best condition even after working for
many years.
1)Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
2)Well-known , strong cutting ability, low noise, to ensure the machine working for long time.
3)High-performance drive motor to ensure the machine's high speed and accuracy.
4)Perfect design, top quality accessories, to minimize the machine's failure rate.
5)Breakpoint specific memory to keep the carving status when power off, processing time forecast and
other functions in case of the accidental power outages.
Technical data :

Brand	chanke
Model	CK1325 3D Wood router cnc
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg

Packing:
All woodworking machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.
Guarantee & After Sales Service:
1. 2 years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
.FAQ
Question 1: How long about the machine's guarantee?
Answer: 2 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
