Pege Cryogenic Deflashing Machine for Quality Grommet and Gasket Deflashing

Product Description

Renowned Automatic Rubber and Plastic Burr Cleaning Machine Manufacturer from China
Product Description As the temperature decreases, rubber and plastic components undergo a remarkable transformation, becoming hardened, brittle, and crystallized. During this transition, they lose their natural flexibility, making them susceptible to breakage under external pressure at brittle temperatures. The flash, typically much thinner than the molded product itself, becomes brittle faster than the main product when exposed to low temperatures. Utilizing this principle, the cryogenic deflashing machine operates within the critical timeframe where the flash is brittle, while the product retains its innate flexibility. By using high-speed projected special plastic media, the machine efficiently targets and eliminates the brittle burrs, ensuring the flash is removed with ease while preserving the integrity of the product.
FUNCTIONS
Our state-of-the-art machine is expertly utilized for the precise removal of flashes from small rubber and plastic components, such as O-rings, gaskets, and other molded parts.
Employing sophisticated cryogenic processing technology, flashes are initially frozen and subsequently eradicated through high-speed projection media, specifically Polycarbonate blast. This process significantly enhances the surface quality of molded rubber and plastic parts.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T

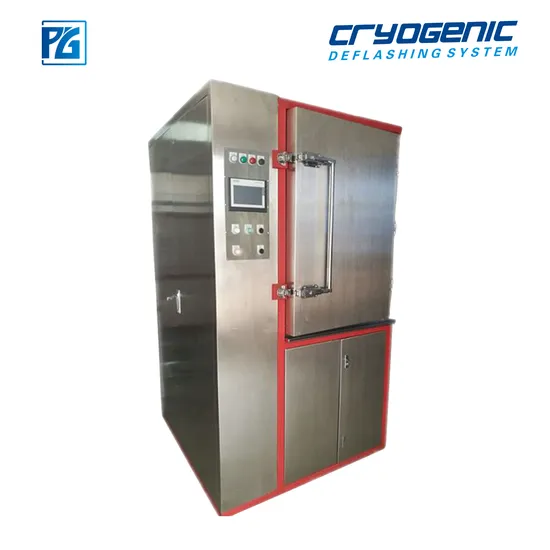

MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. O-rings and irregular rubber parts of various materials and sizes.
B. Components for micro electronic products.
C. Precision elastomeric components.
D. Precision injection molding plastic parts.
E. Research and Development part runs.
F. Die casting products, including zinc, aluminum, and magnesium alloy items.
FEATURES
Unmatched Efficiency: This machine has the capability to replace approximately 60-80 workers in the task of flash removal.
Precision Excellence: Effectively removes small and hardened flashes that are challenging for manual labor, significantly enhancing the precision of the products.
Cost-Effective: Offers a more economical solution compared to manual processing, reducing overall operational costs.
