OEM Manual Precision Sumore Shanghai China Torno Lathes Mini Metal Lathe Machine

Product Description

Product Description

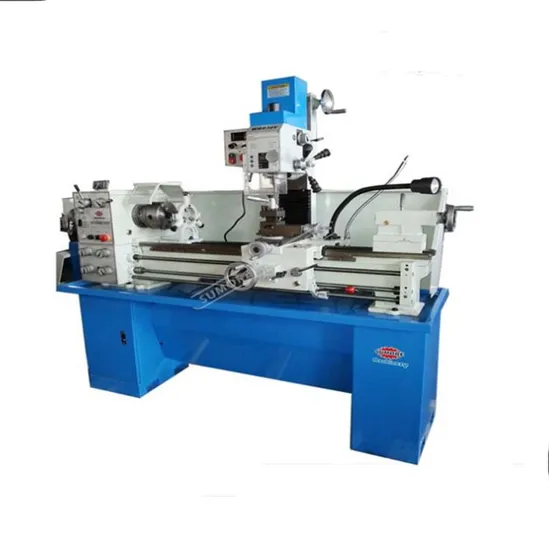

1000MM Metal Cutting Multi-Purpose Lathe Mill Drill Combo Machine
Quick Detail:
Processing material: aluminum, copper, metal, wood, plastic, etc
Swing over bed:300mm
Distance between centers:910/1000mm
Hole through spindle: 38mm
Description:
SP2306 Metal cutting multi-purpose lathe machine belongs to one of our most economic manual Metal cutting multi-purpose lathe machine. It is new condition not used Metal cutting multi-purpose lathe machine. And it is small in size and delicate in design. This Metal cutting multi-purpose lathe machine is made in China. The main features are as below:
1. We are manufacturer
2.Extensive use
3.High precision, long life
4.Quality and quantity assures
5. CE certification
6. Brand new lathe machine for sale
Product Parameters

Model	SP2306
Swing over bed	300mm
Distance between centers:	910/1000mm
Max.travel of cross slide	180mm
Max.travel of saddle	430mm
Hole through spindle	Φ38mm
Spindle taper	MT5
Spindle speed	65-1810rpm
Stations of tool carrier	4
Max.travel of tailstock quill	100mm
Tailstock taper	MT3
Metric/inch thread range	0.4-7mm / 4-60 t.p.i.
longitudinal range of automatic feeding	0.079-1.291mm
cross range of automatic feeding	0.017-0.276mm
Motor power	1.1/1.5kw
Packing size	1680/1850x750x1400mm
Drilling and milling
Drilling capacity	Φ25mm
Main Distance from bench to spindle nose	232 mm
End milling capacity	Φ25mm
Face milling capacity	Φ50mm
Spindle speed	Variable speed
Spindle speed :High range	100-1000 r/min
Low range	100- 1000 r/min
Spindle stroke	Φ230mm
Spindle taper	MT3
Table size	340x120 mm
Main Motor power	600 w
Packing size	1680x750x1400mm
	1910x750x1400mm
N.W./G.W.	520/560 kg
	580/630 kg
