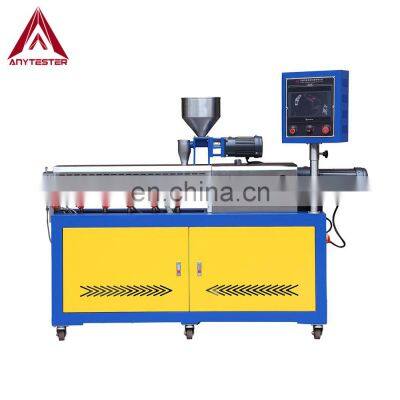

AT395 Lab Twin Screw Extruder (original HY3921) is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable for lab test and quality control, teaching research and small scale production.
The following picture shows a whole system to produce pellets:
Specification

Model	AT395
Screw diameter	¢20mm
Length-diameter ratio (L/D)	1:40
Screw rotating direction	co-rotating parallel
Screw speed	0~120rpm
Screw material	Special tool steel of 40CrNiMoA chrome molybdenum alloy, treated with nitrogen, adjustment, chrome plating and superfine grinding.
Cylinder	Hard alloy wear-resisting inner sleeve can be replaced
Heating zone	5 zones of cast aluminum heater for cylinder 1 zone of heater for feed zone Heating power:1kw for each heating zone Covered with stainless steel safety cover
Cooling device	Water circulating cooling system, equips with separate screw valve flow control device for each zone
Drive power	2.2kw gear motor
Feeder	0~50rpm variable frequency speed adjustment screw to feed materials forcibly
Electric control system	PLC programmable LCD touch screen control, all parameters can be control and display, the extruding process can be dynamic displayed and monitored. With USB port, easy to output and printout test data.
Pressure control system	Adopts imported high precision temperature and pressure sensor, with over-pressure protection function, can automatically alarm and control the machine running or stopping.
Output capacity	3 ~ 15kg/h
Power supply	3phase, AC380V, 50Hz
Dimensions	1950×500×1500mm

Details & Features
★ Different screw types can be selected according to different sample materials.★ Matched with different auxiliaries can extrude pellets, sheet, pipe, etc. (optional configuration).
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Dimensions	1160x510x1050mm
Weight	Approx. 80kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.
