High Voltage Sf6 Electrical Electric Intelligent Controller Air Vacuum Interrupter Circuit Breaker Load Break Switch

Product Description

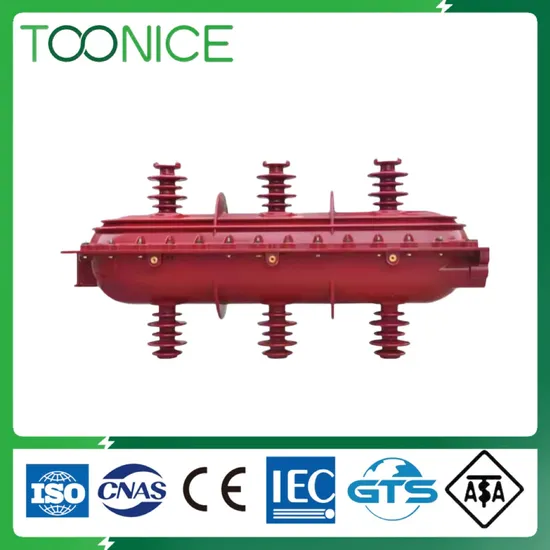

FLN36-12D/FL(R)N36-12D series indoor high-voltage sulfur hexafluoride load switch is a medium-voltage switchgear developed by our company with reference to international new technology and according to the relevant standards of China's power system, and its performance indicators meet the national standard GB/T3804-2017 "3.6kV-40.5kV high-voltage AC load switch", which is the main switching element of the ring main unit.
The load switch is a collection of brake, opening, grounding as one of the multi-functional medium voltage switchgear, in a fully sealed, with a reinforced structure of epoxy resin shell filled with 0.05MPa SF6 gas, with the least parts to achieve the above three functions, to ensure the quality of the product, improve the reliability. It is maintenance-free and can operate safely for more than 20 years under normal conditions.
Product Description
F L R N - 36 12D / 630/125 - 20/31.5
1 2 3 4 5 6 7 8

1:Load Switch

2.SF6 Gas

3.Fuse

4.Indoor

5.Design Serial Number

6.Maximum Operating Voltage (With Grounding Switch)

7. Current Rating

8.Rated short-time withstand current

Working Environment:

Relative humidity:

Daily average < 95%

Monthly average < 90%

Altitude: <5000m

*Severe vibration and shock, as well as no fire, chemical corrosion, explosion hazard location

Enforce The Standard:

GB/T3804-2017 High-voltage AC Load Switch 3.6kV-40.5kV

Technical Parameters:

Number	Name		Unit	Data
1	Rated voltage		kV	12
2	Rated frequency		Hz	50
3	Current rating		A	630
4	Rated peak withstand current		kA	50
5	4S rated short-time withstand current		kA	20
6	Rated closing current		kA	50
7	Rated breaking current	Active load interrupting current	A	630
		Closed-loop interrupting current	A	630
		Cable charging interrupting current	A	10
8	Power frequency withstand voltage 1min interphase, to the ground/fracture		kV	42/48
9	Withstand lightning impulse voltage interphased, to ground/fracture		kV	75/85
10	Sf6 gas relative pressure (20°C gauge pressure)		MPa	≤0.04
11	Rated operating voltage (electric)		V	AC220,DC220
12	Rated voltage of shunt tripper		V	AC220,DC220
13	Average opening speed		m/s	3.5±1.5
14	Average closing speed		m/s	3.5±1.5
15	Three-phase opening and closing simultaneity		ms	≤3
16	Main loop resistance		μΩ	≤120
17	Manual operation is most in the moment		N.m	≤160
18	Center distance between phases		mm	210±0.5

Detailed Photos
