OE Qaulity Rubber Coating Steel NBR & FKM Coated Steel Coil/Strip

Product Description

Product Description
Product Dimension:
Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.1 2mm single and double -side rubber coated metal roll material can meet the requirement of different customers.
Characteristics:
1.Excellent high and low temperature resistance-working temperature is -20ºC-120ºC(NBR), -40ºC-290ºC(FKM);
2.Good sealability and suitable for gas and fluid sealability;
3.Excellent mechanical performance. Tensile strength can reach 100MPa.Excellent compression, recovery and stress relaxation performance;
4.Good fluid resistance and suitable for various complicated environment, especially suitable for mechanical oil, antifreeze and coolant;
5.Good anti-ageing property
6.Fine processing properties and can be processed automatically in continuous way which keep the same lot of gaskets in good consistence with high efficiency.
Application
Rubber coated metal materials gives the consideration of both metal rigidity and rubber elasticity for its special construction. So this material is suitable for automobile and motorcycle cylinder head gaskets ,accessory gaskets, refrigeration and compressor gasket with its excellent sealability,,compression and recovery property, good creep relaxation and fluid resistance and durability, good coolant and low temperature resistance performance. We are supplying 90% OE market share for sealing products in China and overseas.
Rubber Coated Metal Production LineThe First NBR & FKM coating steel coil Production Line in China.
Key equipment is from France, Germany and Japan. State-of-the-art Equipment, Automatic production line to assure the premium quality and short lead time
Experimental Facility
Advanced measurement control method. We introduce the advanced surface pressure analysis instrument from Japan to analyse the pressure figure of the sealing position and improve the product analysis accuracy.

Pre-control	Marketing research
	Product development and research
	The purchase of raw material
	The technological preparation
In Process Control	Manufacturing process control, technological control
	The control for the production operator
	The equipment mornitoring, production environment control
Post-action Control	Finished product inspection
	Quality problem disposal
	The user's feedback

Comparison For Finished Product
Company Introduction
JINAN SUNRISE NEW MATERIAL TECHNOLOGY CO.,LTD

Completely Vertical Global Supplier of Premium NBR & FKM Coating steel material. From raw coating steel material to finished anti noise shim & abutment & hardware on brake pads and Gasket. Supply both OE & Aftermarket globally. Leading enterprise in the industry in China. Committed to continuous reinvestment in technology, vertical integration, R & D, product development and state-of-the-art manufacturing capabilities.

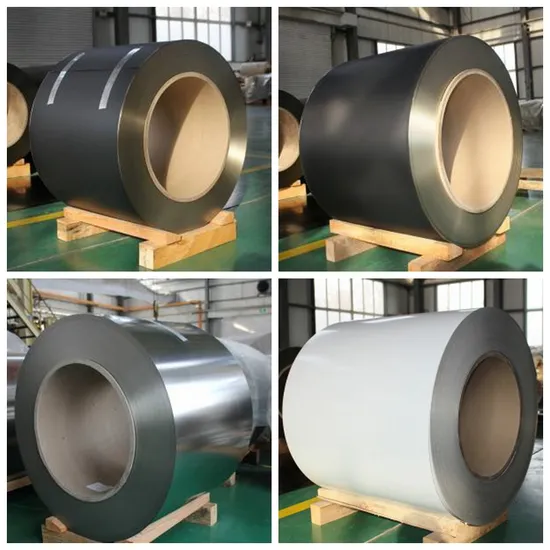

Package and shipment

Internal corner protector with steel collar.

External corner protector with steel collar

Fastening of internal and external corner protector with heat-sealed circumferential plastic strapping

17 mm radial steel strapping x4 arranged at 90° (Type A)

Vertical axis hole (Type A) • Palletized exclusively on fumigated and branded wood

Fastening of the strip to the pallet using 4 straps, 1 per side

8 mm thick card inner sleeve if required.

Internal diameter of card inner sleeve is 400 mm

External diameter of coil is 800 - 900 mm

Weight of each coil is 900 - 1000 KG

Size of Pallet is Min (800*800 mm) and Max (1000*1000 mm)

FAQ
Q:Can I get smaple?
A:Sure. We usually provide existing sample Sample charge is refundable when order is up to certain quantity.Usually the freight fee is born by the buyer.
Q:What's the delivery time?
A:20~30 days after T/T prepayment.
Q:Why the delivery status shall be in master ciol?
A:To save cost for you and in order that you can get much better price, we suggest to deliver the goods in master coil instead of slitted kind as the export tax refund is different for master coil with width above 600mm and slitted kind.If you have no sltting capacity,we will supply the sltted kind for you.
Q:Why choose us?
A:We have advanced equipment and rigorous quality inspection process, and can provide test reports and quality certificates.ubber Coated Metal Production Line
