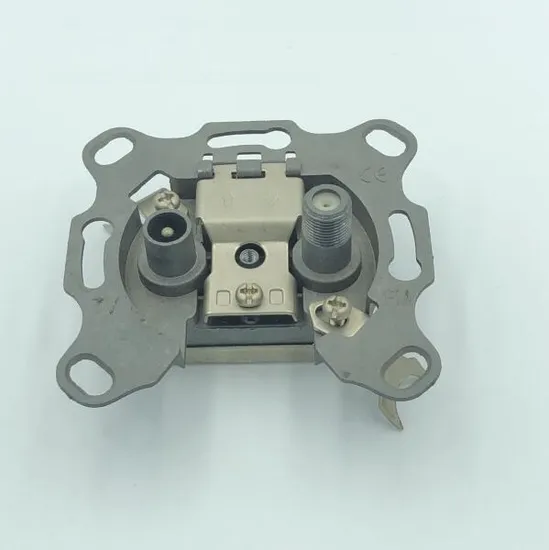

2 Gang TV+Sat 5-2450MHz TV Wall Socket Outlet (SHJ-TWS011)

Product Description

5-2450 MHZ TV+SAT TV SAT Splitter with 10 years factory experience
Changzhou Shengshijia Electronic Co.,ltd is the manufacture with mor than 10 years factory experience. We are specialized in producing all kind of:
1. 5-2450MHZ TV, FM, SAT, TV+FM, TV+SAT, TV+FM+SAT, TV+FM+SAT+SAT End/Through-Type Wall Socket Outlet.
2. Satellite finder & satellite meter;
3. CATV attenuator/Amplifier & Satellite splitters;
4. CATV Splitter &DiSEqC switch CATV TAPS
5. Catv splitter, log splitter, power splitter, splitter
6. Catv Drop Splitter in Power Transmission & Transformer
7. Divider, Disintegration, Abruption, Distributor, Outside Splitter, Tap And Splitter, Splitter And Tap
1. 5-2450MHz
2. It is used for TV and SAT
3 . Zinc Alloy material
4. Professional Factory
5. With high quality, competitive price and fast delivery
TV+SAT Technical Data:

Parameter	Frequency Range	ITEM:T	ITEM:8	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.8dB MAX	3.0dB MAX	2.5dB MAX	2.5dB MAX	2.5dB MAX
	950-2400MHz		5.5dB MAX	4.8dB MAX	4.5dB MAX	4.5dB MAX	4.0dB MAX
IN-SAT	950-2150MHz	2.5dB MAX	8.5dB MAX	11.5dB MAX	13.5dB MAX	15.0dB MAX	17.5dB MAX
	2150-2400MHz	3.0dB MAX	9.5dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-TV	5-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS	950-2400MHz	18dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS	950-2400MHz	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN
Power Passing	IN-SAT	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)
