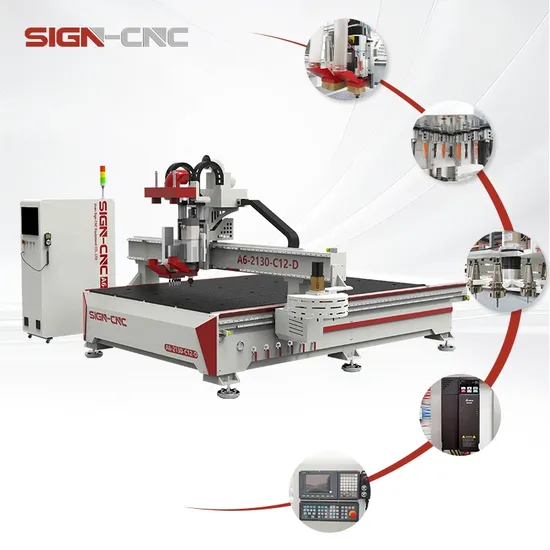

Atc CNC Router Intelligent CNC Router Nesting Machine for Furniture Store with High Speed
Basic Info.
Model NO.
A6-2130-C12-D
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Worktable
Vacuum Worktable
Spindle
9kw Atc Air-Cooling Spdinle
Spindle Speed
24000 Rpm
Inverter
Delta 11kw
Drilling Head
Drilling Head with 9 Bits (5+4)
Tools Changer
Disc 8-12 Tools Magazine
Control System
Syntec 60we Control System
Motor
Syntec 1000W Bus Control Servo Motors
Reducer
Japan Shimpo Reducer
Machine Voltage
3 Phase
Software
Artcam + Post Processor
Weight
1500kgs +
Transport Package
LCL/FCL Wooden Case Packaging
Specification
18CBM
Trademark
SIGN-CNC
Origin
China
HS Code
84659900
Production Capacity
300sets/Month
Product Description
Atc Cnc Router Intelligent Cnc Router Nesting Machine For Furniture store with high speedProduct Description
Machine features:
A6 series ATC CNC Router with automatic steering saw to achieve fast cutting and increase cutting thickness. Suitable for wood processing plants,furniture factories and other processing factories.
Product Parameters
| Model | A6-1325 / 1530 / 2130 /2040-C12-D |
| X, Y Working Size | 1300*2500mm / 1500*3000mm / 2000*3000mm /2000*4000mm |
| Z-axis Height | 300mm |
| Table Surface | Vacuum table |
| X, Y Structure | Helical rack and High precision 25mm square guide rail |
| Z Structure | High precision 25mm square guide rail and ball screw |
| Max. Power Consumption | (Without spindle) 3.0KW |
| Max. Rapid Travel Rate | 45m/min |
| Max. Working Speed | 30m/min |
| Spindle Power | HQD 9KW ATC air-cooled ER32 spindle |
| Drilling head | Drilling head with 9 bits (5+4) |
| Spindle Speed | 0-24000RPM |
| Inverter | Delta 11KW Inverter |
| Drive Motors | SYNTEC 1000W bus control pure servo motors |
| Reducer | Japanese Shimpo planetary reducer |
| Tools changer | Disc 8 tools changer (12 16 20 tools available) |
| Pump | 7.5KW air cooling pump |
| Working Voltage | AC380V/50/60Hz |
| Command Language | G code |
| Control System | SYNTEC 60WE control system |
| Tool sensor | Adjust the distance from the tool to the materials |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| X,Y Resolution | <0.03mm |
| Software | Artcamwith post processor |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
Detailed Photos
Packaging & Shipping
Customer feedback
FAQ
Q: What is the warranty:
A:Two years guarantee of the whole machine,one year for electrical components
- For hardware issue, fail parts (excluding the consumables)shall be replaced/repaired free of charge during the warranty period.
-For software issue, provide the operation manual or video for guiding, our technician is able to teach you online to run the machine or eliminate the fault for free.
Q: How do I choose CNC router model?
A: Just let us know your working demands, suitable models will be recommended. We have MTC CNC router, ATC woodworking center, pneumatic tool changer CNC router, multi-head CNC router, foam machining center, 4-Axis/5-Axis ATC CNC router and various types of woodworking machines.
