10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System

Product Description

10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
model: M2C2305+RD100S
(100M cable camera 2305+10.1inch 4K monitor)

Description of Portable pipe sewer camera system

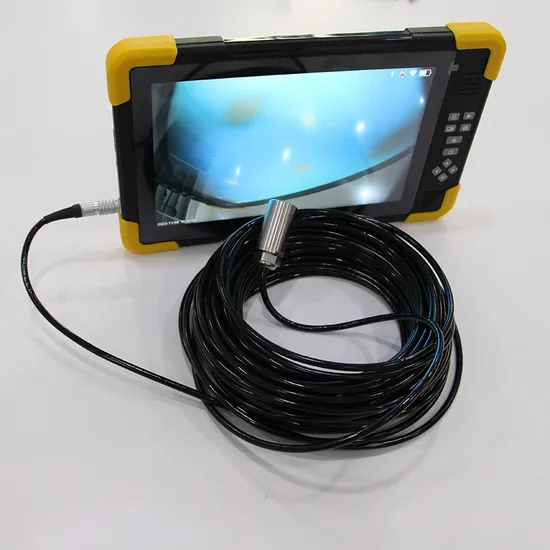

M2C2305(5MP)+RD100S is consist of 10.1" 4K touch screen monitor and IP68 underwater camera with 12pcs LED light,120 degree,IP68 316 stainless steel housing camera. And monitor can control the camera light brightness. Also has 4 times zoom /recording/edit photo function.

Deep well Inspection Camera DVR system is a professional sewer camera system that was designed for Contractors and Plumbers to work smarter, get the job done faster, and provide a higher resolution display screen for viewing pipes.

100M 10inch Underwater Fishing/Sewer/Deep Water Well Borehole Inspection Camera DVR Kits



100M cable 1080P AHD Plumbing Sewer Drain Underwater Inspection Camera System

Selling points:

5MP Drain Camera System

5MP HD-AHD 316 stainless steel sony camera, Anti-corrosion,LED 8-grade brighness control,no audio
*5MP 100M underwater camera *140 ° 12LED, ø 23*53mm *0.0001Lux/F1.2 ensures clear image under water *Camera waterproof rate: IP68 *The camera can withstand 200m waterpressure ( 2MPa ) *Cold-resistant, waterproof and pull-resistant black cable. *Effective Pixels 2560(H)*1440(V) *Sensor 2MP sapphire crystal lens window * IP68 waterproof, 100m, 4.2mm diameter cable




4K high resolution deep water welll inspection camera system

Selling points of monitor

*Monitor bracket: Removeable from the cable reel
*4 colors removeable Rubber Corner protectors, please choose one color when order
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.264
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

Specification of Drain Pipe Inspection system

Underwater Camera
Image Sensor	5MP SONY Image Sensor
Lens View angle	140°
Light source	12 pcs LED
Min. Illumination	0.0001Lux/F1.2
Waterproof rate	IP68
Lens	3.6mm F1.2 (H )
Video Frane Rate	PAL: 1080p/25fps	NTSC: 1080p/30fps
Camera Dimension	23*53mm
DVR Monitor
Size of the screen	10inch LCD screen
Brightness	800cd/m2
Resolution	1280*800 pixel
Video Compress	H.264 +
Video storage format	MP4
Picture format	2GB-256GB TF
Wifi control	802.11 a/b
wifi Channel	2.4000-2.4835Ghz
Language	Multiple
Power Supply	DC 12V/2A
Battery	6500mAh working time >=5 hours
Size	10inch:30CM x19CM x 1.8CM
Weight	10inch: 865g
