Agricultural Fertilizer Production Line Fully Automatic Soil Mixing Machinery

Product Description

Product Description Agricultural fertilizer production line fully automatic soil mixing machinery

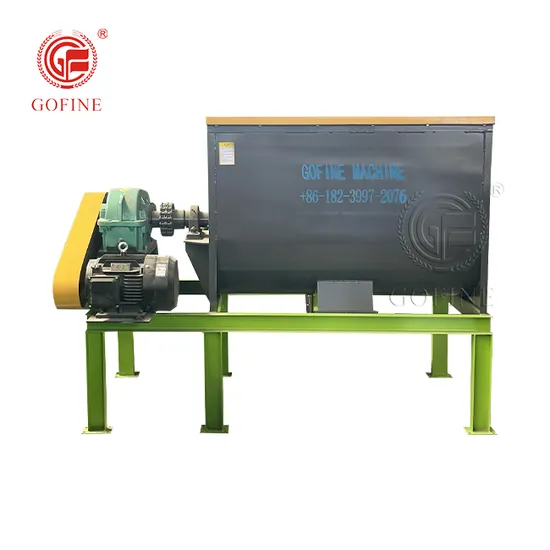

Introduction of Horizontal Ribbon Mixer
Horizontal mixer, also known as a ribbon mixer, can continuously and thoroughly mix and stir materials. It is widely used in the mixing of organic compound fertilizer, compost, potting soil, animal feed, dry powder, putty, and other materials.
The shaft seals at both ends adopt special seals to avoid material leakage and are easy to replace. It occupies a small area and has high working efficiency. It is a practical and widely applicable mixing equipment.
Horizontal mixers are widely used in chemical, compost, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder, health products, feed, additives, aquaculture, ceramics, refractory materials, rare earth, plastics and other industries.
Working Process of Horizontal Ribbon Mixer
Before the mixer works, prepare the raw materials to be mixed, which can be powder, granular or liquid. Put the prepared materials into the mixer through the feed port. Depending on the design of the equipment, a manual or automatic feeding system may be used.
After the mixer is started, the internal ribbon mixer begins to rotate, generating strong shear force, causing the material to move up and down and left and right in the tank, forming a circular flow. The material is constantly turned under the action of the mixer to ensure that the ingredients are fully mixed and evenly mixed.
During the mixing process, the operator can monitor the mixing state and adjust the speed or mixing time if necessary to ensure the desired mixing uniformity.
When the mixing time reaches the preset value, stop the rotation of the mixer. Discharge the evenly mixed material through the discharge port.
Product Parameters

Model	Rotor diameter (mm)	Production capacity (t/h)	Power (kw)	Weight (t)
700*1500	Φ600	2-3	5.5	1.8
900*1500	Φ700	3-5	7.5	25
1000*2000	Φ900	5-8	11	3.5

Product Details
1. Horizontal tank, small footprint, and large capacity.
2. The spiral stirring shaft has a unique stirring principle, so fully mix the materials. Especially suitable for viscous materials.
3. Support customized stainless steel material, better anti-corrosion performance.
4. The gearbox drives the spiral shaft, with low noise, low failure rate, and long service life.
5. A U-shaped tank bottom is more conducive to material discharge and cleaning.
6. Constant speed rotation, control devices such as variable frequency drive, motor starter, and operation station can also be provided.
7. Upgraded motor, high power, more efficient mixing and crushing.
Overseas Scene
Packaging & Shipping
About Us Zhengzhou GOFINE Machine Equipment Co., Ltd. located in Zhengzhou West Development Zone, is a large-scale fertilizer equipment supplier integrating the scientific research, production, sales, import and export services since 1987. GOFINE takes "Quality First, Customers Supreme" as its tenet,"Treat customers with honesty, create business with integrity" has been deeply rooted in the hearts of every GOFINE person. GOFINE are willing to cooperated with all the new and cooperated customers to create a glorious future together!
FAQ 1. Why choose us?
Gofine Machine is a professional equipment manufacturer, that integrates scientific research, production, sales, import, and export. One-stop procurement service, support customized solutions.
2. How can we guarantee the quality?
We have a strict quality control system to ensure the factory quality of each product.
3. What can you buy from us?
Gofine Machine produces fermentation equipment, compost-turning machines, crushing mixers, granulators, screeners, packaging machines, and other commercial equipment, etc.
4. What services can we provide?
We have professional overseas installers responsible for installation, commissioning and free training. Professional personnel are waiting for you online 24 hours a day.
5. How to choose equipment?
We have a professional technical team to customize reasonable solutions for you and support customized services.
