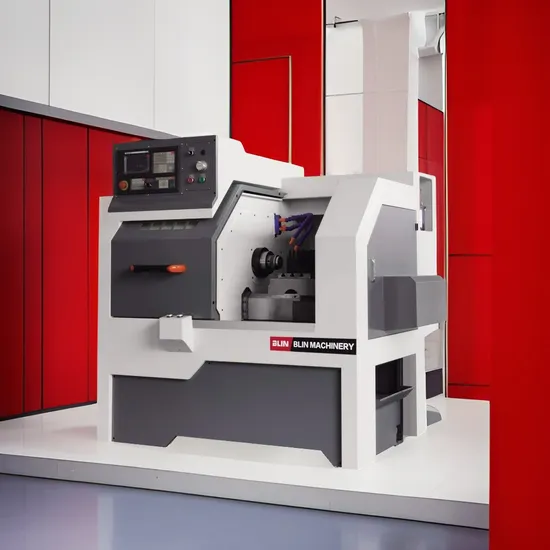

Mini Turning Lathe Machine for Metal (BL-Z0632)
| US$11,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-Z0632
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
400 mm
Max. Turning Length
200 mm
Spindle Speed
3000 Rpm
Spindle Bore
48 mm
Transport Package
Plywood Case
Specification
1700*1400*1700
Trademark
BLIN
Origin
Ningbo China
HS Code
8458110090
Production Capacity
480 Uniits/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
mini turning lathe machine for metal(BL-Z0632)- TAIWAN linear guideway and ball screw - Super high performance-price ratio
Details:
| Item | Specification | Unit | BL-Z0632 | |
| Capacity | Chuck size | / | 5''/6'' | |
| Max. swing dia. over bed | mm | Φ400 | ||
| Max. swing dia. over slide | mm | Φ120 | ||
| Max. turning length | mm | 200(chuck) | ||
| Spindle | Spindle speed | rpm | 3000 | |
| Spindle type | / | A2-5 | ||
| Spindle bore | mm | Φ48 | ||
| Spindle motor | kw | 3 | ||
| Clamping device | / | Hydraulic collet/Hydraulic chuck | ||
| X/Z axes | X/Z axes travel | mm | 320/330 | |
| X/Z axes servo motor | N.m | 4/4 | ||
| X/Z axes rapid move speed | m/min. | 20/20 | ||
| X/Z ball screw O.D. | mm | Φ25/Φ32 | ||
| X/Z linear guideway width | mm | 25/30 | ||
| X/Z axes positioning accuracy | mm | 0.03/0.03 | ||
| X/Z repeatability accuracy | mm | 0.005/0.01 | ||
| Tool post | Tool post | / | Gang tool/4T tool turret | |
| Toolshank size | mm | 20×20 | ||
| Tailstock | Tailstock | / | N/A | |
| Others | Overall size | mm | 1700×1400×1700 | |
| N.W. | kg | 1200 | ||
Main parts list:
| Item | Brand |
| Bearings | CHINA top |
| Ball screw | TAIWAN |
| Linear guideway | TAIWAN |
| Chuck& cylinder | TAIWAN-AUTOGRIP |
| Main electric parts | FRANCE-SCHNEIDER |
Standard configuration: - GSK980TC3 CNC Controller
- Hydraulic collet
- Gang tool
Optional configuration: - SIEMENS 808D ADVANCED CNC controller
- Hydraulic chuck
- 4 station tool turret Other models choice:
