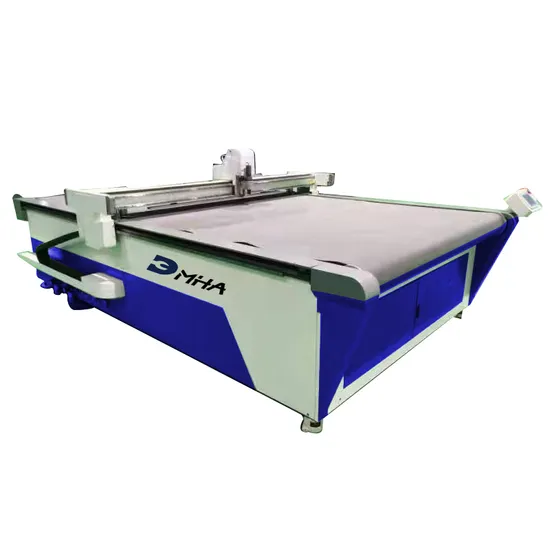

Foam Cutting Machine/CNC Foam Cutting Machine

Product Description

Automatic Paper Cutting Plotter
Knife cutting machine could work with your computer by Ethernet cable, you can send any design shape to this cutter for cutting purpose. It is able to cut Leather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, rubber, cloth, fabric, gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, acrylic board, carpets materials, car mat materials, sponge, PU,EVA,XPE,PVC,PP,PE,PTFE,ETFE and composites.

Technical Parameters
Model	DMHA-CM1625
Machine Head	Intelligent Cutting Bar
Safety device	Infrared induction automatic emergency stop
Translation speed	2500mm/s
Cutting speed	0-1000mm/s
Cutting thickness	0-50mm (depending on the hardness of the material)
Platform Design	Automatic feeding rolling platform
Fixing method	Tracking sub-regional vacuum adsorption
Repeatability	±0.01mm
Servo resolution	≤0.01 mm
Cutting accuracy	±0.1mm
Buffer capacity	2GB
CNC panel	Chinese and English LCD touch screen
Transmission system	Servo motor, linear guide
Servo motor, linear guide	11KW
Rated voltage	380V±10%
Cutting material	leather, composite material, sponge, eva, foam, fiber and so on

Popular Sample Knife Cutting Machine Advantage
1. Replacing manual processing to improve processing accuracy, efficiency and safety.
2. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.
3. Vacuum adsorption table, high-power vacuum pump
4. The cutting machine adopts square linear guide rail to ensure the high precision of the machine and bear large load
5. The gantry type movement is adopted, and the materials on the working table can be processed at will, so the operation is convenient.
