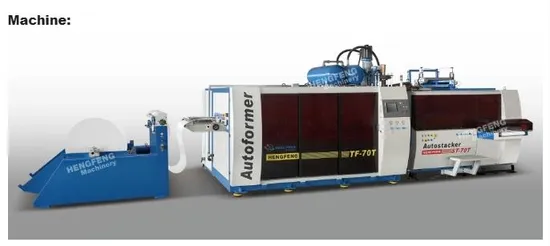

High Quality and High Speed PP/Pet/PS Jelly/Coffee/Juice/Ice Cream Cups Thermoforming Machine (HFTF-70T)

Product Description

High Quality and High Speed PP/Pet/PS Jelly/Coffee/Juice/Ice Cream/Tea Cups Thermoforming Machine(HFTF-70T)
Applicantion:
HFTF-70T Plastic cup forming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system
Rapid mould changing device
Mould automatic memory system
PLC design with easy operation.
Main Specification

1- Max. Forming Area	680× 320mm
2- Max. Down Forming Machine	150mm/180mm
3- Max. Up Forming Height	15mm
4- Sheet Thickness	0.35-2.5mm
5- Max. Roller Diameter	Φ 1200mm
6- Air Pressure	0.7-0.85mpa
7- Water Consumption	50L/min
8- Air Consumption	3000L/min
9- Max.Speed	35Cycles/min
10- Power (Three Phase Four Wire)	3× 380V+NP+PE. 50HZ
11- Heating Power	130kw
12- Main Motor Power	11kw
13- Feeding Motor Power	4.4kw
14- Scrap Rewinding Motor Power	0.55kw
15- Machine Weight	10000kgs
16- Dimension	11000× 3650× 3500mm

Moulds:
Sample:
Shipping packaging:
Company History:
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.
Factory Address: NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
Operation:
Contact person:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
