Advanced CNC Gun Drilling Machine with High-Speed Software
| US$8,500.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
U-650S
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.8-200mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Drilling Depth
300mm
Drilling Diameter
1.5-50mm
Transport Package
Plywood
Specification
3300*2560*3000mm
Trademark
Ubright
Origin
Cn
HS Code
8459210000
Production Capacity
60 Set/Month
Product Description

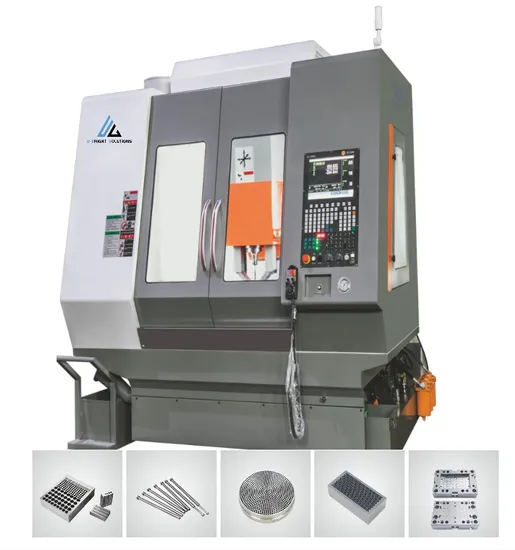

PRODUCT FEATURESHigh-speed CNC precision drilling machine U-650S is specially developed for the processing of various small precision metalparts micro holes, fine holes and small mold thimble holes,cylinders and inserts.The precision hole processing equipment that integrates advantages such as high speed, high precision stability and batch processing.
The gun drilling processing range of the equipment is from 1.0mm-012.0mm, and the gun drilling process can be formed at one time to achieve accurate bore diameter, smooth surface.
This equipment integrates self-developed stepless accelerationsoftware, double high-pressure pump oil tank with seven-stage filter, automatic chip removal system, inside frequency conversion oil cooler, Inside oil mist collector, patented oil shelter.So, this product is high efficient, energy saving, stable and accurate.
Procesing case:
Technical Specifications
