Product Description

Product Description

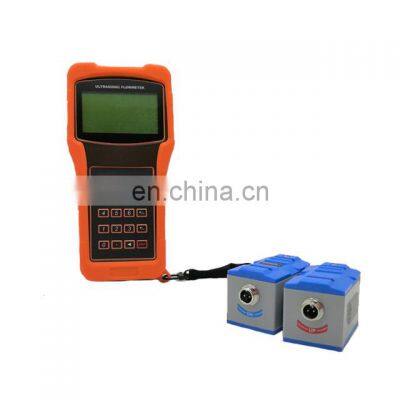

Product DescriptionIntroductionThe TUF-2000H hand held ultrasonic flow meter are applied to a wide range of measurement. The range of pipe diameter are from 15 to 6000mm (from 0,5 to 200 inches) and the liquids can be: ultra-pure, potable water, chemicals, raw sewage, cooling water, river water, plant effluent etc. As the instrument and the transducers are non-contacting and have no moving parts, the flow meter cannot be affected by system pressure, fouling or wear. Detailed ImagesFeatures of TUF-2000HHigh Accuracy measuring Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%Small size, Light weight Dimensions: 200×92×32mm; Weight:520gNon-intrusive measuring Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance. Wide measuring rangeSeveral types transducer for selection, measuring pipe size from DN15mm to DN6000mmLarge LCD display Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etBuilt-in data loggerBuilt-in 24K data logger, store over 2000 lines measuring data Transducer Option Related product TDS-100H ultrasonic flow meterSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.TDS-100F1 ultrasonci flow meterTDS-100F is a fixed mounted ultrasonic flow meter, and can operate with all our instruments transducer. Their electronic enclosures are rated as IP65,thus,can be installed for both indoor and outdoor.TDS-100M Ultrasonic flow meterThe TDS-100M modular ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Packing & DeliveryAccessories1. 5mx2 Transducer Cable2. Aluminum Carrying Case3. Battery Charger4. RS232 Cable5. Clamp Fixture6. 5m Ruler Our Services 1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.2. MOQ:1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 18 Month's Warranty on all productDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter,Concrete Detector etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical. We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc. We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact usDALIAN TAIJIA TECHNOLOGY CO.,LTDAddress:NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033Email ndt at Skype:tmeasurement04Whatsapp:+86 15998577470Phone: +86-411-39685079
