Mini Compactor Roller Press Compound NPK Fertilizer Granulator Machine

Product Description

Product Description

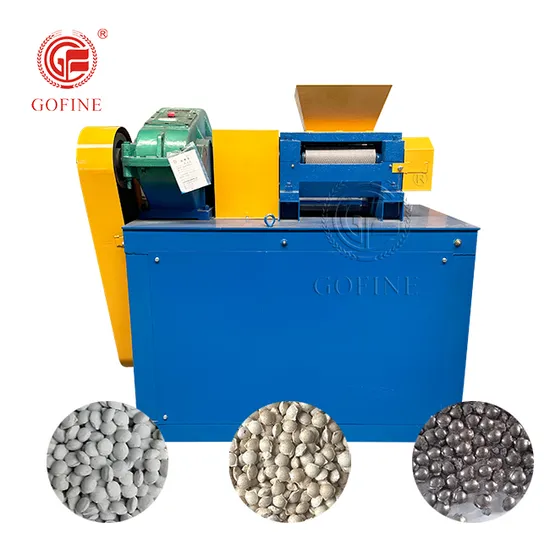

The double roller extrusion granulator is dry granulation equipment that can quickly extrude and separate materials at room temperature and process them into oblate particles. Compared with other granulation equipment, no drying measures are required, which simplifies the granulation process. The return rate is very low, no need to add adhesives.
The double-roller extrusion granulator is widely used in the processing of fertilizer, NPK, urea, graphite, cat litter and other granules, with low investment and high production efficiency. Combined with other related equipment, it can form an automatic compound organic fertilizer granule production line. Product Selling Point1. Dry granulation
It can be granulated at room temperature without any additives to complete the granulation work.
2. Low energy consumption
The advantage of dry granulation is that there is no need for drying and cooling after the granulation is completed. Save some energy consumption.
3. High adjustability
By replacing the roller grinding tools, the shape of the finished particles can be changed. Adjust the particle size of the roller extrusion to achieve the purpose of controlling the particle size.
4. Material can be customized: stainless steel
For materials with special properties, we recommend stainless steel double-roller extrusion granulators, which have better anti-corrosion properties.
Working Process of Double Roller Granulator
The material enters through the upper conical material opening, and the air between the material molecules is expelled by the action of pressure. Rely on the force between molecules to form a high-hardness ball cake, and then fall into the lower part of the sawtooth crumbs. The ball cake particles are separated by crushing; and then enter the screen, and the qualified particles flow out from the bottom outlet.
Product Parameters

Model	Production (t/h)	Power (kw)	Pressure roller specifications	Finished product specifications	Reducer model	Material moisture
DZJ-I-1.0	1 ~ 1.5	15	Φ150 x 220	Φ2.5 ~ Φ10	ZQH350	2% ~ 5%
DZJ-I-2.0	1.5 ~ 2.5	18.5	Φ150 x 300	Φ2.5 ~ Φ10	ZQH400	2% ~ 5%
DZJ-I-3.0	2.5 ~ 3.5	22	Φ186 x 300	Φ2.5 ~ Φ20	ZQH400	2% ~ 5%
DZJ-II-1.0	1 ~ 2	15	Φ150 x 220	Φ2.5 ~ Φ10	Customized	2% ~ 5%
DZJ-II-2.0	1.5 ~ 2.5	18.5	Φ150 x 300	Φ2.5 ~ Φ20	Customized	2% ~ 5%
DZJ-II-3.0	2.5 ~ 3.5	22	Φ186 x 300	Φ2.5 ~ Φ10	Customized	2% ~ 5%

Product Details
Rack section
The frame section is welded with high-quality carbon steel plate, stainless steel, and channel steel. The whole machine structure is stable and durable.
Stainless steel
Supports customized stainless steel materials, granulating, and anti-corrosion, and is durable for special materials.
Multi-layer extrusion
The multi-layer extrusion design makes the finished granules more compact.
Dual-axis drive
The dual-axis drive design makes the double roller extrusion performance more stable and the mold fit is stronger.
Double Roller
Advanced engraving equipment is used to ensure the high quality of roller grinding tools.
Granules Dispersion
Particle dispersing equipment can accurately separate ballcakes without destroying the shape of the particles.
Double Roller Granulator Fertilizer Prodcution Line
Overseas Scene
Packaging & Shipping
About Us
FAQ
1. Why choose us?
Gofine Machine is a professional equipment manufacturer, that integrates scientific research, production, sales, import, and export. One-stop procurement service, support customized solutions.
2. How can we guarantee the quality?
We have a strict quality control system to ensure the factory quality of each product.
3. What can you buy from us?
Gofine Machine produces fermentation equipment, compost-turning machines, crushing mixers, granulators, screeners, packaging machines, and other commercial equipment, etc.
4. What services can we provide?
We have professional overseas installers responsible for installation, commissioning and free training. Professional personnel are waiting for you online 24 hours a day.
5. How to choose equipment?
We have a professional technical team to customize reasonable solutions for you and support customized services.
