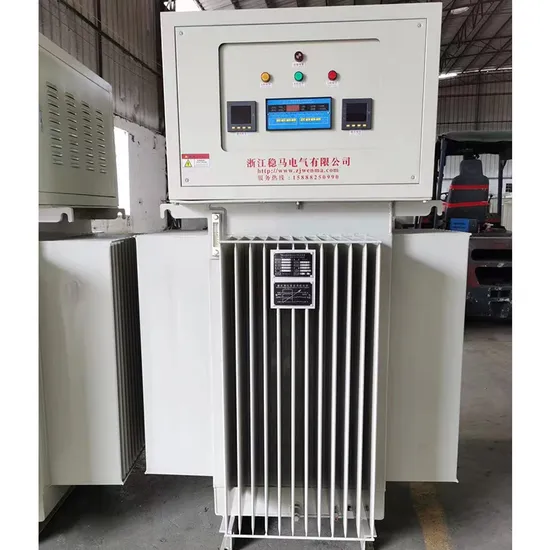

Tnsja-1200kVA Three-Phase Oil-Immersed Induction Regulator 380V Full-Automatic Compensation Power Supply High-Power Booster

Product Description

TNSJA-1200/1600KVA Three-Phase Oil-Immersed Induction Regulator 380V Full-Automatic Compensation Power Supply High-Power Booster
Product Description
TNSJA series the 2nd generation Industrial Oil-immersed Induction(Brushless/Stepless) Voltage Stabilizer is composed of voltage
regulator and transformer SSTS (including, oil tank, stator, rotor top Cover, drive control motor M, hand wheel, control circuit board and
secondary circuit elements for voltage regulation control. It achieves the rotational voltage regulation through electric motor drive or
hand wheel and gear coupling within the rotation range of 1800. Besides, it is provided with the electric SS limit and mechanical limit on
the upper end of the oil tank. For electric SS limit, the power supply of motor is switched off by a limit switch and for the mechanical limit,
the rotational limit is stopped by bolt protector. The stator winding and rotor winding are fixed by the base frame and put into the oil tank
with 10 # transformer oil. When the load generates heat, the heat dissipates from the radiating pipe by the way of Oil-immersed cooling.
The oil immersed voltage stabilizer has the functions of phase failure, phase loss, overvoltage and over-current protections, and its main
circuit has the characteristics of contactless voltage regulation, no mechanical wearing, no spark, no interference and low failure rate.
In addition, this voltage stabilizer has the advantages of high impact resistance, super strong instantaneous overload capacity, long
service life and maintenance free.
Stepless voltage adjustment (brushless)
With inductive and contactless voltage regulation, the voltage stabilizer can increase and decrease the load voltage linearly.
Excellent features
By using high-magnetic-inductivity silicon steel sheet made in Japan, this voltage stabilizer minimizes the no-load loss and no-
load current, and with its performance utilized best, reduces power loss.
Robust, durable and long life expectancy
The internal body of this voltage stabilizer is induction voltage regulator IVR, containing no carbon brush and its main characteristics
are permanent wear-proof, robust and long service life.
Efficiency >98%,with no waveform distortion.
TECHNICAL PARAMETERS:

No.	Item Name	Item Description
1	OUTPUT VOLTAGE	380V ±20% ±25% ±30%
2	WORKING FREQUENCY	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	CONSTANT VOLTAGE PRECISION	±(1~5%) adjustable
5	NOISE	55 dB
6	INSULATION CLASS	F
7	OPERATION TIME	≥ 100,000 hours
8	PROTECTION CLASS	IP 20
9	VOLTAGE WITHSTANDING	2000V, 1min. Not broken
10	WAVE DEFORMATION / DISTORTION	≤ 0.1%
11	EFFICIENCY	≥ 98%
12	INSULATION RESISTANCE (MΩ)	≥ 20MΩ
13	RESPONSE TIME (ms)	≤ 100ms
14	TIME FOR STABILIZING	When the input voltage jumps 10% relative to the rated value, the stabilizing time is less than 1.5s.
15	PACKING	Plywood packing
16	ALTITUDE	< 2000m
17	RELATIVE HUMIDITY	< 90%
18	AMBIENT TEMPERATURE (ºC)	-15ºC to +45ºC
19	COOLING METHOD	Forced air cooling with fan
20	ANTI-SURGE PERFORMANCE	The input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs and 100μs, such as lightning induction in the equipment.
