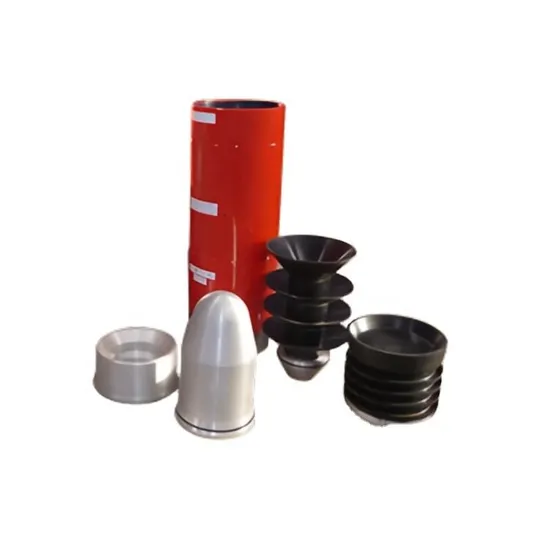

API Cementing Tools 5CT Float Collar Shoe for Oilfield Drilling Equipment

Product Description

API cementing tools 5ct float collar shoe for oilfield drilling equipment Product Parameters

Specification mm		φ508	φ473	φ340	φ245	φ178
Positive pressure(MPa)		30	30	30	30	30
Reverse confined(MPa)		35	35	35	35	35
connection		LTC/BTC	LTC/BTC	LTC/BTC	LTC/BTC	LTC/BTC
Max OD(MM)		534	508	365	270	195
Total Length(mm)	Float Collar	450	510	350	370	320
	Float shoe	650	745	515	500	416

Product Description Product Application Types Available: Single valve and double valve are available;
Spring structure valve and ball strucuture valve are available;
Insert type and normal type are available.
Non-rotating type and normal type are available.
Type: Stab-in Type Float Collar & Float Shoe
API and ISO certified
Specifications: 4''---20''. More special sizes or combination are available as requested.
Connections Type: LTC, STC, BTC
Product Description
Application
Float Collar & Float Shoe serves as the backbone of casing equipment used during primary cementing operations. It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.
Features of Stab-in Type Float Collar & Float Shoe:
a. For float shoe, the rounded nose profile helps guide the casing string.
b. The valve is made with phenolic material and molded with high strength concrete. Both of the valve and concrete are easily drillable with PDC or rock bits.
c. High strength design ensure excellent performance for flow endurance and back pressure holding.
d. Saves considerable running-in time with automatically fill up.
e. For non-rotating Float Collar & Float Shoe, the special non-rotating groove design ensures corresponding cementing plugs drilled out quickly. Detailed Photos Certifications
