The Most Cost-Effective Bucket Elevator 100t/H Feed Bucket Elevator
Basic Info.
Model NO.
TDTG60/33
Processing Object
Beans
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
1 Year
Model
Tdtg60/33
Head Wheel Diameter
600
Convey Volume(T/H)
80-150
Belt Speed
2.6-3.6
Bucket Capaciy
1.05
Hoisting Height
45
Keyword
Bucket Elevator for Grain
Motor
380V 3phz
Frame Material
Galvanized Steel
Application
Grain Lifting
Transport Package
Seaworthy
Specification
4.0*1.5*1.5
Trademark
FTSILO
Origin
China
HS Code
7309000000
Product Description

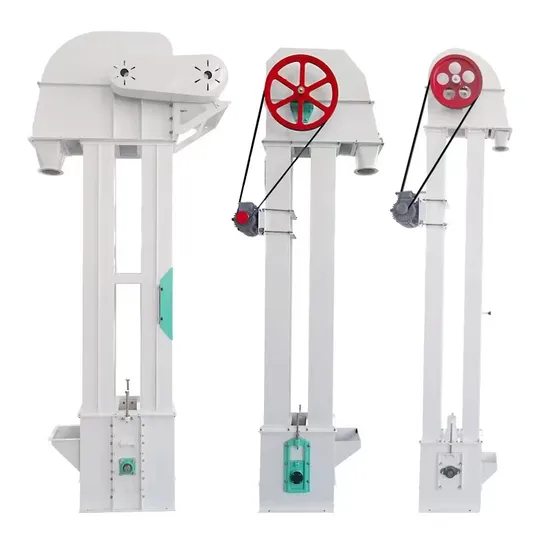

The FTSILO TDTG series bucket elevator is independently developed by FTSILO and is a fixed installation mainly used for the vertical continuous conveying of powdery materials or granular materials.The equipment is of straightforward structure, compact design,good sealing performance, easy installation and maintenance, allowing positive and reverse material feeding, as well as flexible process configuration and layout.The installation height is optional, but the maximum height elevator not beyond 40m.
Application of TDTG series Vertical Silo Sand Seed Grain Bucket Elevator Paddy Rice Elevator for Grain handling
Bucket elevators can handle a variety of materials, and therefore are used in many different industries and applications, though generally, they are not suited for wet, sticky materials, or materials that are stringy or tend to mat or agglomerate. They are frequently found in power plants, fertilizer plants, pulp & paper mills, and steel production facilities.
Main technical parameters
| Model | Head wheel diameter | Convey volumn | Belt speed | Bucket capacity |
| TDTG30/16 | 300 | 15-20 | 2.2-3.3 | 1.05 |
| TDTG50/19 | 500 | 30-40 | 2.2-3.3 | 1.6 |
| TDTG50/23 | 500 | 40-50 | 2.2-3.3 | 2.27 |
| TDTG50/28 | 500 | 50-60 | 2.2-3.3 | 2.05 |
| TDTG60/23 | 600 | 70-80 | 2.2-3.3 | 1.9 |
| TDTG60/28 | 600 | 90-100 | 2.6-3.6 | 2.5 |
| TDTG60/33 | 600 | 110-150 | 2.6-3.6 | 5.5 |
| TDTG60/41 | 600 | 160-200 | 2.6-3.3 | 8.4 |
Successful Project Display
OUR WORKSHOP
Production Process
OUR CERTIFICATE
Exhibition
