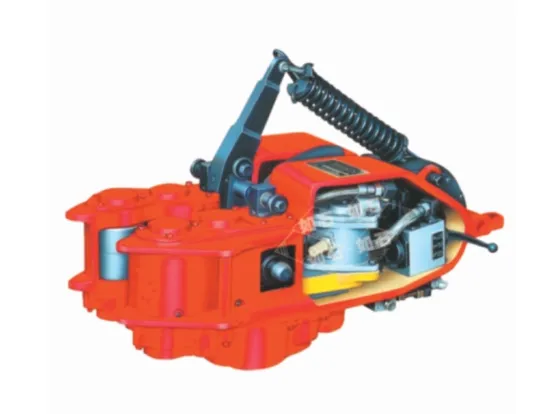

API Certified Wellhead Pipe Handling Tool Spinning Wrench for Oilfield Applications

Product Description

Product Description The wrench is the best replacement of the spinning rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be arbitrarily adjust. The company has developed a wide variety of mechanized wellhead tools for oil drilling and production with a full set of models, including more than 50 series and more than 100 models including ZQ drill pipe power tong series.
Product Parameters

Model		Q140-200	Q254-250	Q254-300Y
Drive mode		Pneumatic		Hydraulic
Size range	mm	88.9-139.7	88.9-254	88.9-254
	in	31/2-51/2	31/2-10	31/2-10
Air pressure	MPa	0.5-0.9	0.5-0.9
	psi	72-130	72-130
Pressure rating	Mpa			14
	psi			2000
Max. brake torque	Nm	2000	2500	3000
	Ft.lbf	1475	1840	2210
Speed	RPM	0-90	0-120	0-95
Air consumption	m3/min	10.3	15
	ft3/min	360	529
flow	LPM			120-140
	GPM			32-37
Size	mm	1400×530×835	1250×570×465	1100×560×700
	in	55×21×33	49×23×18	44×23×28
Weight	Kg	378	440	400
	lb	833	971	880

Company Profile Shandong BEYOND Petroleum Equipment Co., Ltd, as one one-stop supplier for drilling equipment and parts, have been working with different partners based on mutual trust and support basis.
Our cooperation factories prioritize professionalism and adhere to strict quality control measures. We understand that the drilling industry requires a wide range of equipment, which can be challenging for contractors to source from multiple suppliers. To address this, we have developed a unique business model that allows us to provide our clients with a comprehensive package of different drilling equipment and parts.
By consolidating the procurement process, we save our clients valuable time and reduce the risks associated with working with multiple suppliers. Our commitment to "Professional & Efficient, Customer Focus, Win-win Cooperation" has always been the guiding principle behind our operations.
Thank you for considering BEYOND as your trusted partner.
