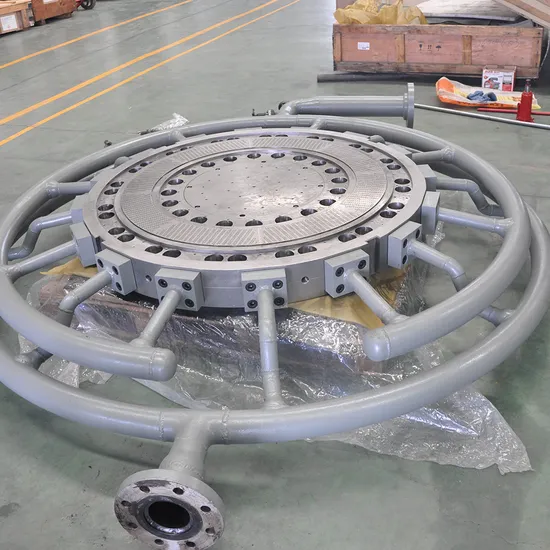

High-Speed Polymer Granulation Die Plate for Industrial Pelletizers, Precision Underwater Die Plate

Product Description

Die plate is constructed with main body and hard face, the key technology for manufacturing is as follows:
1. Selection of the material for main body and hard face.
Main body: high strength, heat-resistance, corrosion-resistance, high weldability, easy produce.
Hard face: wear-resistance, heat-resistance, corrosion-resistance, high weldability.
2. Design of material flow channel and internal heating channel.
3. Welding technology for hard face and main body.

Material	Hardness HRC	Flexural Strength MPa	Wearing resistance	Corrosion resistance	Welding performance	Cracking tendency
WC-Co	66~68	2000~2500	excellent	ok	good	high
TiC-Fe	61~63	1400~1500	good	good	excellent	low
TiC-NiCr	60~62	1500~1800	excellent	excellent	excellent	low

The tolerance limits of main parameters for die plate

Outer diameter	D	-0.5-0
Height of hard face	h	0-0.5
Inter/outer diameter of hard face	D1/D2	±0.4
Total Height	H	0-0.5
Flatness of hard face surface		0.015
Parallelism of hard face to die plate reference surface (mm)		0.02
Roughness of hard face surface	Ra	0.8

SHENYANG JINFENG SPECIAL EQUIPMENT CO., LTD.Shenyang Jinfeng company, founded in October 1993, has always been committed to the research and development, the production, and the sales of the key consumable spare parts for large-scale extrusion granulation equipment. Shenyang Jinfeng owns 3 wholly-owned subsidiaries: Shenyang Jinfeng Special Equipment Co. Ltd., Shenyang Jinfeng Special Cutting Tools Co. Ltd., Shenyang Jinfeng Science and Technology Holdings Co. Ltd. And we are developing to a group company.
Shenyang Jinfeng is a manufacturing enterprise in the petrochemical granulation equipment spare parts field. It has established long-term and stable business cooperation with PetroChina, CNOOC, Coal Chemical Group and other domestic and foreign large and medium-sized chemical enterprises. The main products of Shenyang Jinfeng company include metal-ceramic composite pelletizing knives (designing and manufacturing), granulation die plates(designing, manufacturing, refurbishing, hard face replacing, capacity expanding and changing steam heating system to oil heating system), pelletizing knife holders (designing, manufacturing and refurbishing). The company can also provide corresponding services such as start-up of the granulation unit and the resolution to the granulation abnormalities. Meanwhile, we could provide rotary jet pumps, extruder booster gear pump bearings, granulator bearing chamber assemblies, heat insulation sealing gaskets for the die plates and other granulation unit related products.
FAQ

Q: What are the core advantages of metal-ceramic composite pelletizing knives compared to traditional tools?

A: Our knives combine metal-ceramic materials for exceptional hardness and corrosion resistance, extending service life by 3× under high-temperature/pressure conditions. Ideal for PE, PP polymer pelletizing

Q:What is the minimum order quantity (MOQ)? Can we request samples?

A: MOQ: 1 unit. Free samples are available (clients cover logistics). Bulk orders qualify for tiered discounts

Die plate is constructed with main body and hard face, the key technology for manufacturing is as follows: 1. Selection of the material for main body and hard face. Main body: high strength, heat-resistance, corrosion-resistance, high weldability, easy produce. Hard face: wear-resistance, heat-resistance, corrosion-resistance, high weldability. 2. Design of material flow channel and internal heating channel. 3. Welding technology for hard face and main body.
