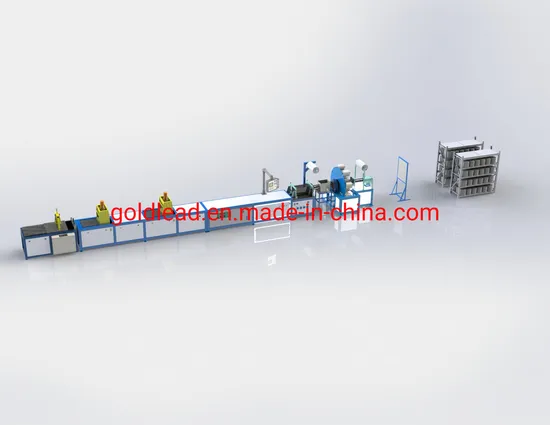

FRP/GRP/Gfrp/Fiberglass Pullwinding Machine for Tubes, Pipes
Basic Info.
Model NO.
BLR-2-200
Pulling Force
20t
Process
Pultrusion + Winding
Transport Package
Sea Shipping
Specification
BLR-2-200
Trademark
GOLD LEAD
Origin
Jinan, China
HS Code
8477800000
Production Capacity
20sets/Month
Product Description
| Configuration The machine includes: | |||
| Items | Description | Qty | Technical Data |
| 1 | Roving creels | 4pcs | Ivory paint, combined structure, easy accessibility Roving bobbins capacity: 70pcs Dimension: 2000mm(L)x700mm(W)x2000mm(H) |
| 2 | Resin bath | 3pcs | Capacity: 50kg 2 layers bath Bath dimension: 1030mm(L)x720mm(W)x190mm(H) Dimension: 1610mm(L)x810mm(W)x1100mm(H) |
3 | Winding machine BLR-2-75 | 1 set | Characteristics: a. Winding speed and traction speed can be separate control or synchronous control. b. The traction speed value is collected by encoder and displayed by digitizer. c. The signal of traction speed processed by computer can be used to control and adjust the winding machine rotation speed, thus to realize the synchronous of traction and winding. d. Adopts uniform power take off and can install multiple winding head. E. According to the direct reversing device, it to make the adjacent winding heads move in negative direction. |
| Parameter Central height of winding roll: 1020mm Max winding diameter: 75mm Numbers of winding head: 2 Numbers of rolls/every winding head: 4 Max size of rolls: 270mm Rotation speed of winding head: 0-66rpm Space between winding heads: adjustable Power: 2.2KW | |||
| 4 | Die station | 1pc | Size of die table: 970mm(L)x910mm(W)x20mm(H) Length of die: 900mm Adjustable height of die table: 0-80mm Temperature control zones: 4 (max control power 20kW, heating plated customer made) Heating elements: steel plate or cast aluminum type Dimension: 3960mm(L)x1430mm(W)x1710mm(H) |
| 5 | Puller | 1pc | Clamping envelope: 800mm(W)x300mm(H) Length of clamping platen: 610mm Max traction force: 200kN Max clamping force of traction heads: 200kN Traction speed: 0.1m-0.8m/min Max traction to-and-fro journey: 600mm Clamping journey: 150mm Traction cylinder: HSG ∮125X600 Clamping cylinder: HSG ∮125X150 Oil pump power: 380V 50HZ 2x4kW 380V/50Hz Cooling water pump power: 220V/50Hz 1.5KW Dimension: 4800mm(L)x1200mm(W)x1750mm(H) |
| 6 | Cutter | 1pc | Cutting range: 800mm(W)x220mm(H) Rotation speed of cutting blade: 1450rpm Cutting power: 3kW Diameter of cutting blade: ∮600mm/∮50mm (inner) Dust collection: vacuum cleaner 2.2kW Cutting tracing journey: 700mm Cutting mode: auto/manual Fix-length cutting mode: limit switch Dimension: 2700mm(L)x2100mm(W)x1800mm(H) |
| 7 | Creel for finished products | 1pc | Structure: roller type Dimension: 6000mm(L)x700mm(W)x900mm(H) |
| Control system | Temperature control, traction and cutting have separate control system. PLC: Omron Temperature controller: N6000 YATAI, Shanghai Velocimetry encoder: pull displacement sensor Speed digital display meter: Toky Electrical components: Huyu, Zhejiang | ||
| Hydraulic system | Rated Pressure: 16Mpa Variable piston pump: HSU HONG Stacked hydraulic change valve, pressure regulating valve: NORTHMAN, SWH-G02 Precise speed regulating valve: YUKEN Each traction head has separate hydraulic system Oil temperature alarm and filter blocking alarm function | ||
