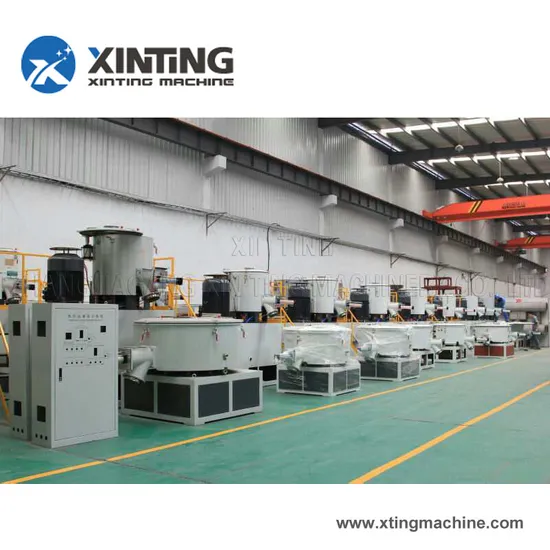

SRL-Z High Speed PVC Plastic Powder Mixer

Product Description

SRL-Z High Speed PVC Plastic Powder Mixer Description:
1. A Complete range of fully automatic high speed mixer unit for the prodcution of both rigid and plasticized PVC dry blends.
2. The compact unit is monoblock construction.
3. A unique mixing impeller using aerodynamic principles gives a rigid mixing action and fast frictional heating.
4.Inner stainless steel and conduction oil jacket to attain equilibrium temperature.
5. The impeller is made of stainless steel, and passed the strictly Static and dynamic balance experiments.
6.The discharging mode adopt the temperature-automatic control and the manual control.
7. The technique of two layers of sealing a adopted in its pot cover. It has sel-friction heating and electi c heating modes.

Feature :
1.The technology of the mainshaft has two functions of electric and steam heating.
2.Two layers of sealing technology is adopted in the pot cover.The opening of the heating mixed cover adopted the airopening device and the opening of the cooling mixed cover adopted pneumatic start.

Main Technical Parameter:

Model/specs	SRL-Z100/200 Hot mixing/cold mixing	SRL-Z200/500 Hot mixing/cold mixing	SRL-Z300/600 Hot mixing/cold mixing	SRL-Z500/1000 Hot mixing/cold mixing	SRL-Z800/1600 Hot mixing/cold mixing
Total cubage(L)	100/200	200/500	300/600	500/1000	800/1600
Effective cubbage(L)	65/130	150/320	225/380	375/650	600/1050
Mixed speed(r/min)	650/1300/80	475/950/80	475/950/80	430/860/60	370/740/50
Heating & cooling manner	electric heating self-friction/water cooling
Mixed time(min/batch)	8-12	8-12	8-12	8-12	8-12
Motor Power(KW)	14/22/7.5	30/42/11	40/55/11	47/67/15	60/90/22
Dimension(L×W×H)(mm)	1950×1600×1800	4580×2240×2470	4800×2640×2480	4600×3000×4050	5170×3200×4480
Weight(kg)	2200	3400	3600	4800	6200

Advantages:
Stainless steel paddle with scientific structure able to mix raw material completely; minimize load, save time and electricity;
Made of premium stainless steel, high strength and easy to clean.
Vertical structure with castor wheels, small size, removing easily.
Vertical reducer motor adopted ensures low noise and long operation hours.
Fast complete mixing, low energy consumption and high productivity.
Pail cover and bottom parts and compress formed precisely matched and durable.
Mixing time able to set within 0~30 minutes.
