Small Gang Type Turning Milling CNC Center Lathe with Y-Axis for Metalcutting Ck32A3-S

Product Description

Product Description
Small Gang Type Turning Milling CNC Center Lathe with Y-Axis For Metalcutting
--CK32A3 is Multi-Functional Turning &Milling Composite Lathe
--CK32A3-S is based on CK32A3 plus Y-axis
--Suitable for processing diameter within 32mm--Equipped with Y-axis , that is CK32A3-S
--Equipped with sub spindle, that is CK32A3-B--Configurated with an automatic bar feeder it can realize full-automatic processing.

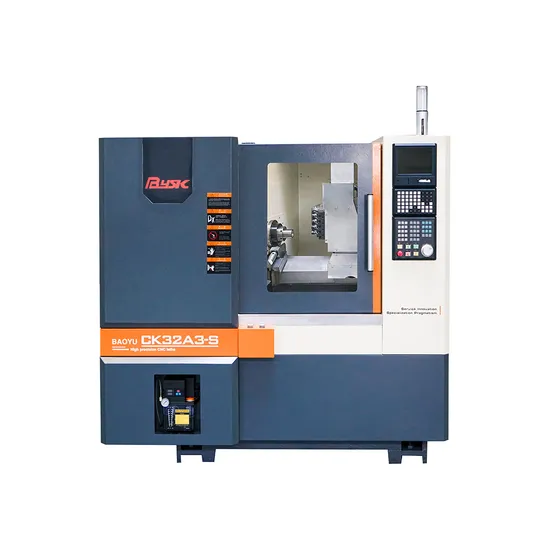

CK32A3-S
CK32A3
Product Parameters
CK32A3-S Gang Tool CNC Lathe

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	7.5kW
CNC System	BYSK	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Maximum Bar Diameter	Φ32mm
	Main Spindle Through-hole Diameter	Φ33mm
	Max Rotating Diameter	Φ400mm
	Main Spindle Center Height from Ground	1000mm
	Main Spindle Speed	0-4000r/min
	Main Spindle Motor Power	4kW/5kW
Travel	X Axis Travel	600mm(Diameter)
	Z Axis Travel	300mm
	X Axis Servo Motor Power	1.3kW
	Z Axis Servo Motor Power	1.3kW
	Guide Rail Form	Linear Guide Rail

Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	100L
Lubrication System	Motor Power	35W
	Capacity	2L
Gang Tools System	T notch 20*20(4pcs)	T notchΦ20(2pcs)
Hydraulic System	Hydraulic Motor Power	0.75kW
	Pressure Value	3.0Mpa
Machine Size	Length * Width * Height	1820*1520*1860
	Machine Weight	1990Kg

CK32A3-S Configurations
Item	Specification	Origins
System	YZ190	Baoyu BYSK
Main Spindle	32 Main Spindle Unit	Baoyu BYSK
Main Spindle Motor	Optional
X Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
Z Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
X Axis Screw Rod	537*2510	Taiwan Joint Venture
Z Axis Screw Rod	670*3210	Taiwan Joint Venture
X Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK
Z Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK

Optional Configurations
Y Axis Multifuctional Power Head Tool Holder
Power Head	End Face	4pcs
	Side	4pcs
	Power	End face0.75kW+Side2kW
	Rotate Speed	4000r/min
	Chuck	ER16
Gang Tools	16*16Square+∮20Hole	5pcs+4pcs

Detailed Photos
THE DIFFERENCE OF CK32A3,CK32A3-S,CK32A3-B
CK32A3 Multi-Functional Turning Milling Composite LatheLive tool (optional) ER20
Live tool servo motor power 0.75kWPrecision C-axis indexing,power head meets the needs of turning& milling.High cost performance
CK32A3-S Multi-Function Turning&Milling Lathe With Y-axisEnd-face Live tool 4pcs ER16
Live tool servo motor power 0.75kW
Side live tool 4pcs ER16
Live tool servo motor power 2kW
Unit spindle structure, more stable rotation
The standard A2-4 spindle nose ,can be used for spring collets or hydraulic chucks
Dovetail and T-notch press tool holder can move back and forth, left and right, and tools arrangement is more flexible
CK32A3-B Multi-Function Turning Milling Lathe With Sub SpindleDiameter of sub spindle through hole 20mm
Sub spindle servo motor power 2kW
Max speed of sub spindle 4000r/min
The high-speed rotation and timing docking of the main spindle and sub spindle,It's solves the problem of secondary operation of workpiece processing under one setup
A sub spindle's tool base and a parting tool base are added on the side of spindle headstock.
BODY MATERIALS
INNER STURCTURE
CONFIGURATIONS
CK32A3-S CNC Lathe will configurated with oil film bar feeder, with high-pressure oil pump,oil mist machine, to improve the performance of lathe,extend the life of lathe Processed Product Display
Pls contact us and send your drawings for accomendation of our suitable cnc machine
