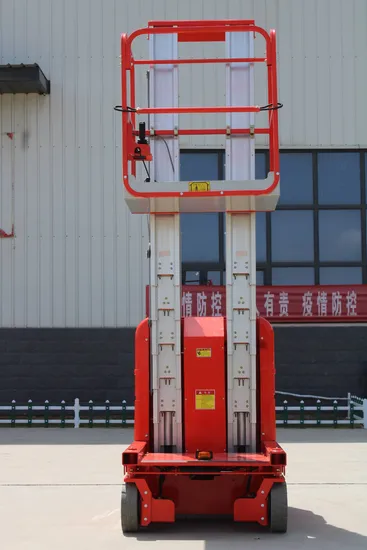

20m 200kg Drivable Vertical Lift Aerial Lift Double Mast Aluminum Alloy Scissor Lift Cherry Picker Boom Lift Vertical Mast Man Lift
| US$8,000.00-9,500.00 | 1 Piece (MOQ) |
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Moves
Push Around
Running Mode
Moving
Feature
Insulating
Certification
CE
Max. Working Height
11m
Max. Platform Height
9m
Loading Capacity
150kg
Occupants
1
Platform Dimension
1.00*0.65m
up/Down Speed
56/49sec
Battery
2*12V/100ah
Transport Package
Wooden Box
Specification
1020
Trademark
TITECO
Origin
China
HS Code
8428909090
Production Capacity
4000 Pieces/Year
Packaging & Delivery
Package Size
654.00cm * 221.00cm * 668.00cm
Package Gross Weight
2000.000kg
Product Description
| Model | AMWP7.5-2100 | AMWP9-2100 |
| Max. Working Height | 9.50m | 11.00m |
| Max. Platform Height | 7.50m | 9.00m |
| Loading Capacity | 200kg | 150kg |
| Occupants | 1 | 1 |
| Overall Length | 1.46m | 1.46m |
| Overall Width | 1.01m | 1.01m |
| Overall Height | 1.99m | 1.99m |
| Platform Dimension | 1.00m×0.65m | 1.00m×0.65m |
| Wheel Base | 1.14m | 1.14m |
| Turning Radius | 0 | 0 |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Up/Down Speed | 48/40sec | 56/49sec |
| Gradeability | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.3kW | 24VDC/1.3kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A |
| Weight | 1270kg | 1345kg |
Features
Cylinder holding valve
Emergency stop button
Two controllers operation
Emergency lowering system
Leveling sensor
Forklift pockets
All motion alarm
Transport tie hole
Battery charger indicater
Electric limit switch
Automatic pothole protection
Drivable at full height
Onboard diagnostic system
